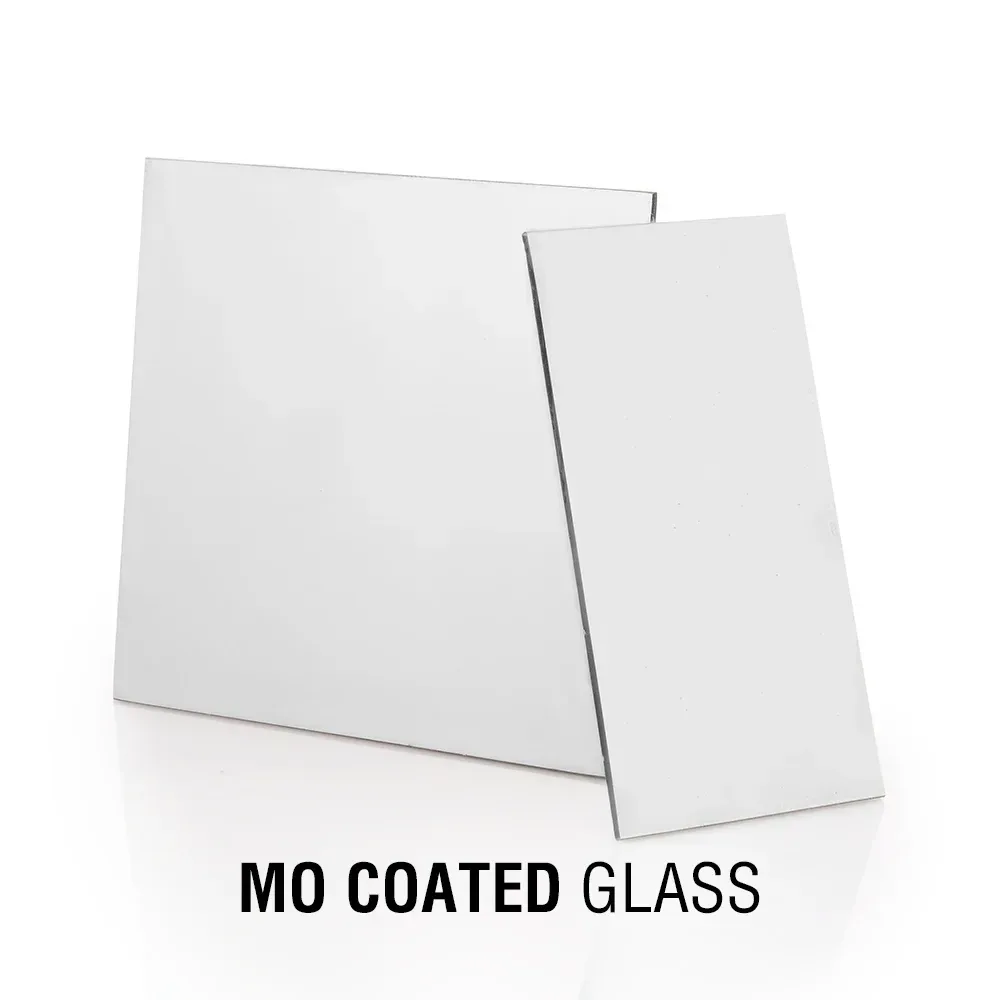

MO Coated Glass Slides

0 out of 5

 9,349.00 343,199.00

  • Thickness : 0.8mm & 2mm
  • Sheet Resistance level of 0.55
  • Resistivity between 0.5 – 1 Ω • cm
  • Thickness tolerance is +/- 0.2 mm
  • Surface Resistivity < 1 ohms/sq
  • Film Layer Thickness 500nm
  • Temperatures up to 600˚C

We are Manufacturer of best quality molybdenum glass melting electrodes! Suppliers of highly pure, sturdy and superior quality Molybdenum (Mo) coatings on the glass in the dimension of your choice.

SKU: TIMO Category:
Clear
View cart

Description

Mo Coated Glass Slides Details

Some features of Molybdenum coated soda lime glass slides designed by us are, that they optimize the conductive characteristics of photovoltaic systems that use copper indium sulphide CIS and CIGS (copper indium gallium dieseline) solar cells. We supply these glasses cover slip in different thicknesses & conductivity level depending on requirements of thin solar film manufacturers; sheet resistance, Na (sodium) diffusion, thin film stress, laser-scribing and glass protection layers (SiO2, SiNx or SiOxNy)

The 1.1 & 2mm thickness that we supply has Sheet Resistance level of 0.55 and Resistivity between 0.5 – 1 Ω • cm. Thickness tolerance is +/- 0.2 mm. We can supply customized sizes with length & width tolerance of +/- 1 mm. We also facilitate Seaming and grinding in C and K shape.

Molybdenum coated glass syncs perfectly with CIGS electrode as it is capable of performing under challenging conditions. Plus they are creep resistant, with high dimensional stability, are corrosion resistance; have electrical and thermal conductivity, and are pure.

Techinstro ensures that the raw material molybdenum is in the purest form, which guarantees that glass melting electrodes are free of impurities which lead absence of discoloration or bubble formation. They last longer and can withstand a lot of wear and tear.

Mo Coated Glass Performance

Techinstro is manufacturers and suppliers of high-quality glass solutions catering to clients worldwide; producing consistent, high-quality glass coatings. Our comprehensive product line that includes glasses, mirrors, and coatings for the wide range of industries, introduces another high-performance glass coating, Molybdenum or Mo coated glass substrate, used in solar panel films and energy industry.

Mo Coated Glass Slides Shipping

In Molybdenum coated glass plate supplied by us, you can expect the tight cut size and thickness tolerance control, and a wide range of edge treatments. We use multiple grades of sheet resistance to customize performance requirements of the client. Our glasses come with superior corrosion resistance. Our designs are optimized and facilitate superior laser-scribing. Our Mo Glasses survive process temperatures up to 600˚C for a long period of time. Whatever that you may need, odd dimensions, mechanically processed, coated, with special threads or cooling holes, whatever be your demand, we’ll customize for you.

Additional information

WeightN/A
Thickness

,

Dimension

, , , ,

Pack Size

, , , ,
