High Pressure Valves and Fittings

Main Highlights

  • Made from stainless steel
  • Designed to handle extremely high pressures
  • Engineered to handle stress and prevent leakage or failure under high pressure
  • Integrated safety mechanisms to release excess pressure and prevent system failure
  • Capable of operating in extreme temperatures
  • Designed for easy maintenance and servicing

Description and Specifications of High Pressure Valves and Fittings

High pressure valves and fittings secure the system’s safety and efficient operation. To control the flow of gases or liquids, these essential elements operate in various applications, like reactors and high pressure. Essentially, valves regulate the flow, while fittings are like connectors that bind different parts.

High Pressure Valves

A high pressure valve is a device that opens, closes, or partially blocks fluid flow to regulate fluid flow within a system or process. Valves are mechanical devices that control fluid flow and pressure. Hence, they manage pressure and flow.

Gate Valve

A gate valve uses a gate—or wedge-type disk that travels perpendicular to the flow to start or halt the flow of fluid in piping. This is the most frequently utilized process plant.

Ball Valve

A rotary motion valve with a quarter-turn that controls flow by rotating a disk with a ball-like form. It resembles a plug valve. A port in the ball enables flow while it is lined up; however, when the valve is rotated 90 degrees, the solid portion of the ball stops the flow.

Needle Valve

A needle valve is used when continuous flow throttling is necessary for regulation. The pointed needle-like disk is the main distinction between needle valves and globe valves in terms of design.

High Pressure Fittings

These fittings bind and connect different parts of a high pressure system, such as valves, pipes, and tubes. They ensure that the connections are leak-proof and enable the reactor to function perfectly. Below are some of the fittings generally used in high pressure reactors.

Welded Fittings

As the name suggests, welded fittings are welded to tubes or pipes. They provide a strong and dependable connection.

Flanges

Flanges are commonly used to connect two valves or pipes by bolting them together, resulting in a secure and sealed connection. These fittings are flat, circular discs with evenly spaced holes around their rim.

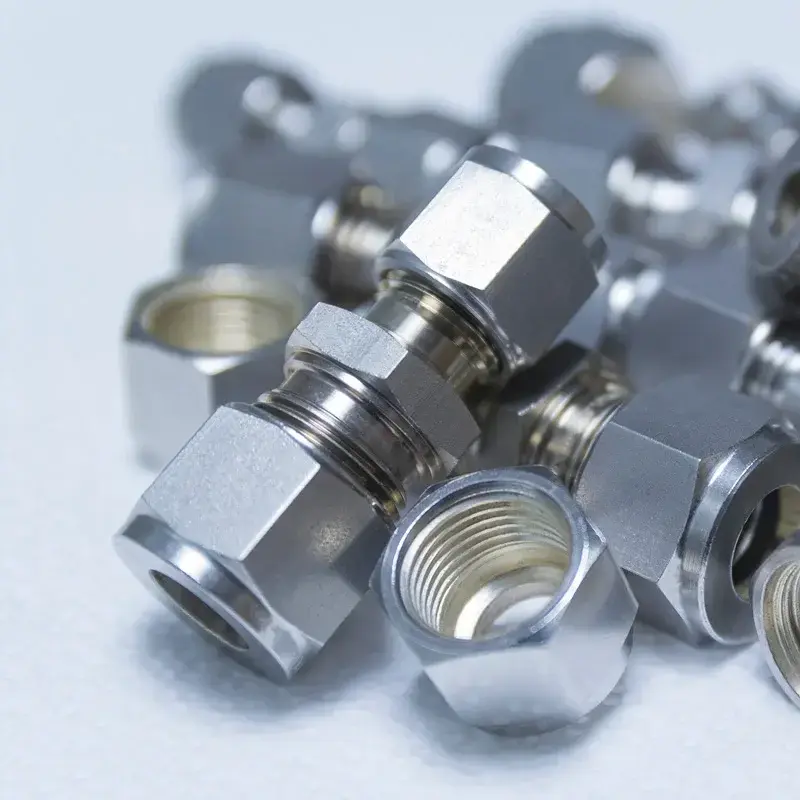

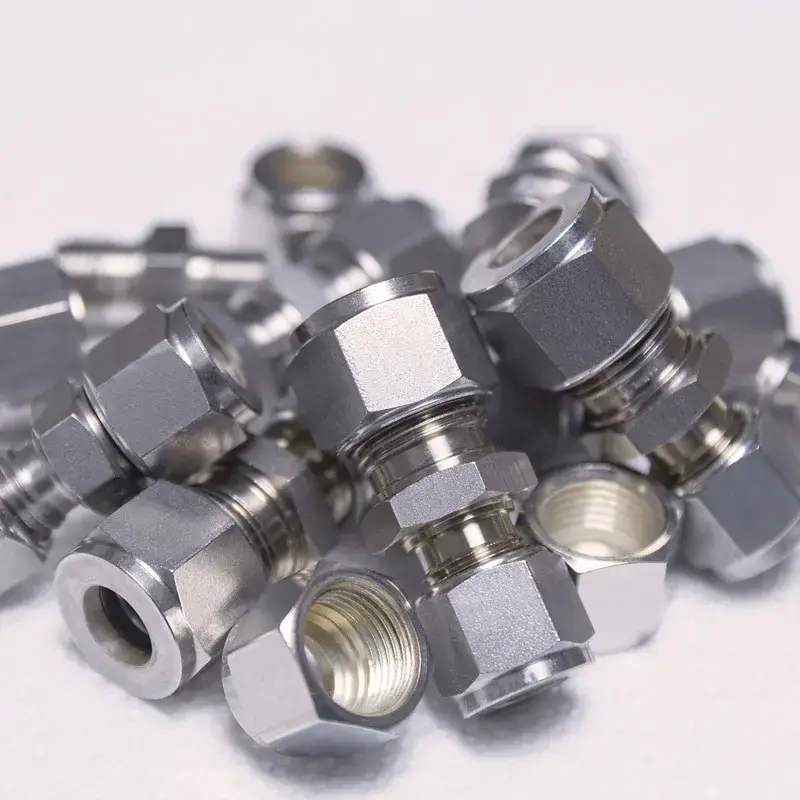

Compression

Compression fittings consist of a ring, a nut, at, and a body. The nut is tightened to press the ring onto the pipe; this results in a secured seal. They connect pipes and tubes without any welding or soldering.

Features of High Pressure Valves and Fittings

  • High pressure valves and fittings are available in stainless steel, brass, PVC, cast iron, and more.
  • They come in different sizes and configurations to adapt to various flow rates and applications.
  • They come with specific pressure ratings that indicate the maximum pressure they can safely handle.
  • High pressure fittings have different end connections, including threaded, welded, flanged, or push-fit. The choice of end connection should match the required piping system and installation method.
  • High pressure valves provide different methods of flow control, such as on/off (e.g., ball valves), throttling (e.g., gate valves), or directional control (e.g., check valves).
  • Corrosion-resistant materials or protection coating can extend their lifespan in corrosive environments.

Application

High pressure fittings and valves are useful in various industries. They control oil and gas flow in pipelines, regulate fluid movement in machines for precise operation, manage water distribution and treatment in water treatment plants, play a very important role in the chemical industry for safe material handling, and control temperature and airflow in HVAC systems. They are essential in pharmaceutical production, aerospace applications, and everyday appliances like water faucets.

How to use High Pressure Valves and Fittings

  • Consider factors like fluid type, pressure, temperature, and compatibility while choosing various fittings and valves.
  • Follow manufacturer guidelines for correct installation, including torque specifications and welding procedures.
  • Install valves with attention to flow direction, indicated by arrow markings.
  • Schedule routine inspections and lubricate moving parts as recommended.
  • Follow safety protocols, avoid excessive force, and use appropriate PPE when handling valves.
  • Continuously check for unusual changes in pressure, flow, or temperature.
  • Establish clear procedures for quick isolation and securing affected areas in case of valve or fitting failure.

Safety Precautions

  • Train the team well.
  • Check for damage often.
  • Use the right tools.
  • Prioritize pressure relief before maintenance.
  • Lockout and tag-out procedures are necessary.
  • Wear personal protective gear.
  • Keep the area ventilated.
  • Have an emergency plan in place.
  • Follow the manufacturer’s instructions at all times for safe operation.

Why Choose Us?

Techinstro is Central India’s leading manufacturer and supplier of high pressure valves and fittings. We provide the best solutions at affordable prices and are committed to exceptional customer service. We understand that quality is the most important asset of any manufacturing unit. We practice stringent quality control measures to deliver only the best products. We supply all around the world. So connect with us today to get the best quotes at an affordable price and ask for customized solutions specially manufactured to meet the operator’s needs.
