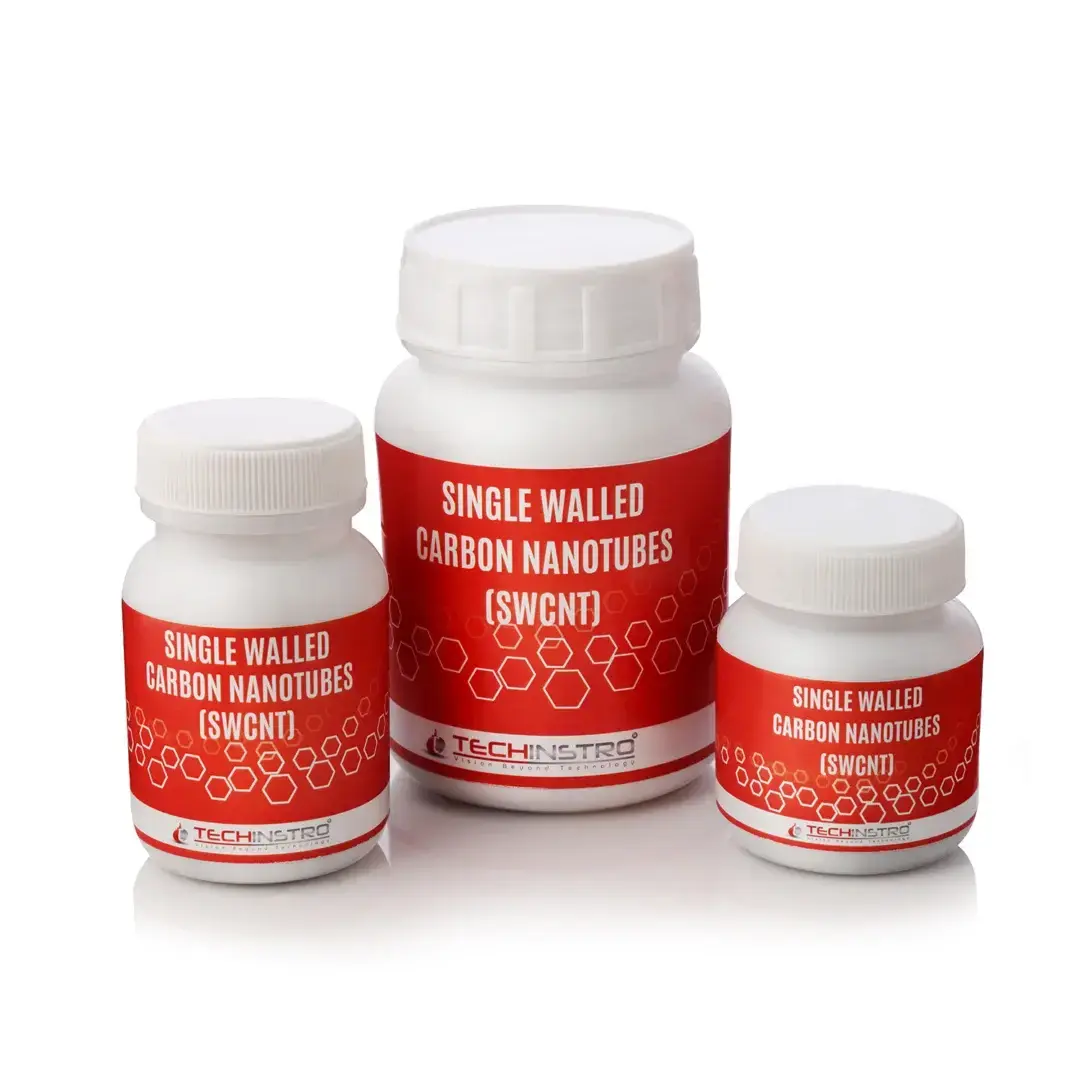

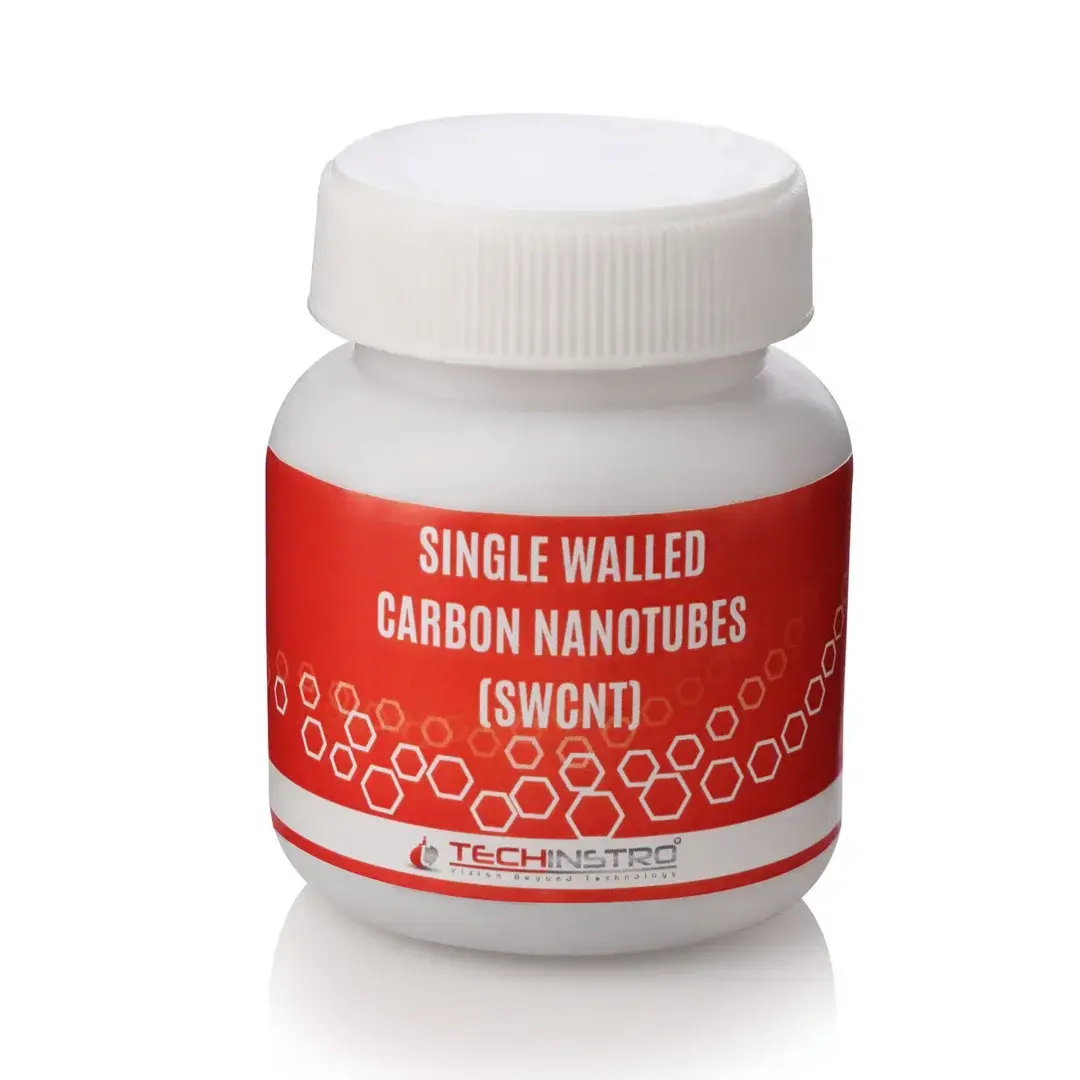

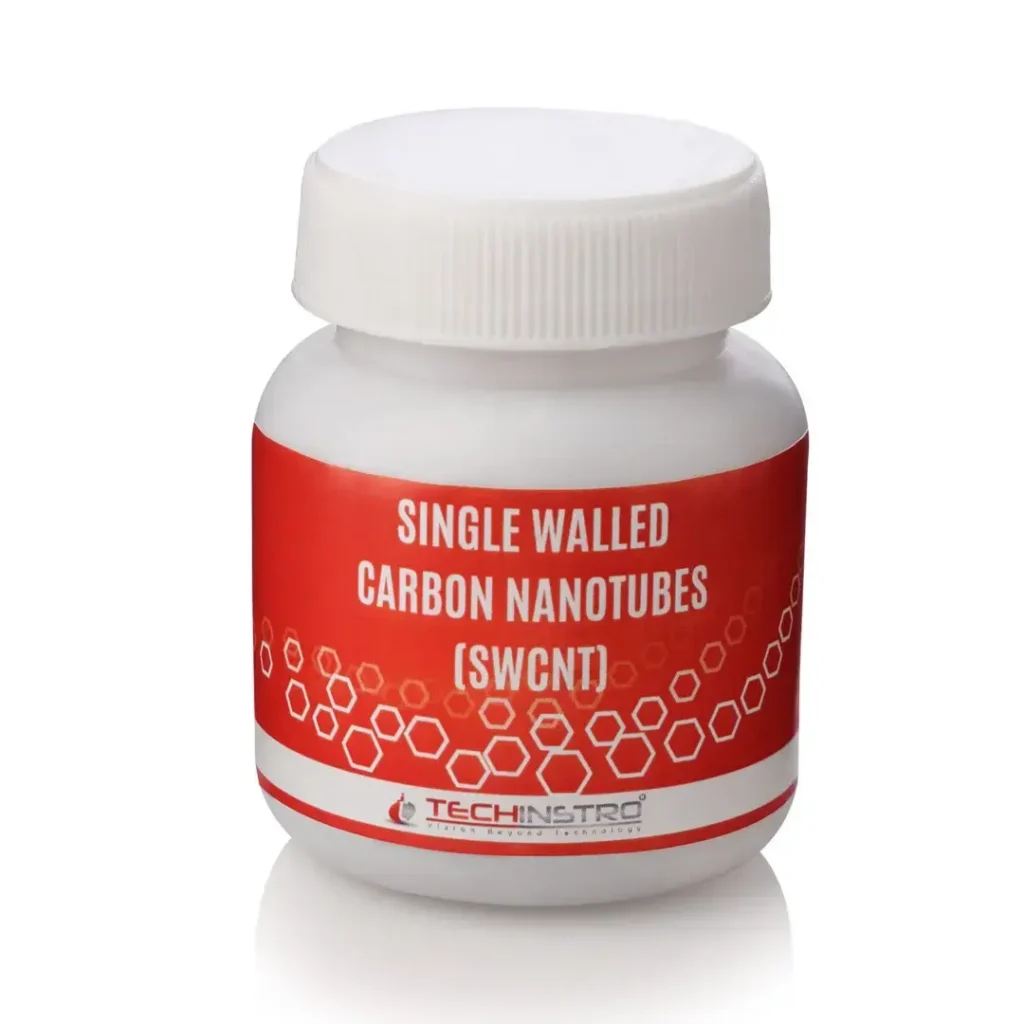

Single Walled Carbon Nanotubes

Features

  • Product Code- TI-SWCNT
  • HS Code – 38249090
  • Number of Nanotubes – 1 to 2
  • Form Factor – Powder
  • Colour – Black
  • Purity – > 99.99%
  • Outer diameter – 1.8 nm +4 nm
  • Length – 5 μm
  • Specific Surface Area – 490 m2/gm
  • Bulk Density – 0.1 g/cm3
  • Thermal Conductivity – > 3000 W/m.k
  • Tensile Strength – 50-500 GPa
  • Packing size – 1gm, 5gm, 10gm, 25gm, and Bulk orders.

Description and Specifications of Single Walled Carbon Nanotubes (SWCNT)

Single walled carbon nanotubes (SWCNT) are one-dimensional CNT that looks like a regular hexagonal lattice, which extends infinitely into a cylindrical hollow tube. Graphene, an allotrope of carbon, is used to make carbon nanotubes. The SWCNT constitutes a single layer of graphene atoms rolled into tubes with less than a 1-nanometer diameter. This makes it incredibly minute.

The molecular bond of the CNT consists of sp2 hybridized carbon, which is also present in fullerenes. Being vigorous, the SWCNT has infinite applications in numerous fields of technology. The single walled carbon nanotubes are essential assortments of carbon nanotubes because they possess a zero to 2 eV bandgap, which is not available in MWCNTs. It is undoubtedly, one of the reasons for compact electronic gadgets.

We use Catalytic Chemical Vapor Deposition (CCVD) method for synthesis, where we made the ultra-pure single walled carbon nanotubes in powder and dispersed form. The researcher might want to use it for research purposes; thus, we provide a simple guide for dispersing the product below. We sell mainly research-grade SWCNTs to R&D and educational institutes, whereas we also manufacture the commercial grade for the industries.

Properties

Elasticity and Strength: It has a honeycomb lattice, which exhibits a strong chemical bonding between 3 carbon atoms. This makes one of the strongest bonds, and thus it is highly resistant to any physical damages. Comparatively, SWCNT displays 100 times more strength than steel and more toughness than diamond when it is in bulk.

Weight: It is the lightest material that exhibits strong properties. Hence, it is favorable in many electronics as well as mechanical applications.

Electrical conductivity: A particular combination of N and M with the CNT gives a metallic output and is highly conductive. Moreover, SWCNT sustains higher stable current densities up to 1013 A/cm2. Another interesting aspect here is that it defective individually. Nevertheless, this defect allows it to work as a transistor.

Heat insulation: Due to high thermal conductivity, the SWCNTs are suitable for electronic gadgets that tend to heat up. One dimensional heat suspender can reduce heat waste if connected to a hotspot with high power density.

These excellent properties make single walled carbon nanotubes an ideal choice for numerous industrial and R&D applications and potential for more widespread use.

Applications of Single Walled Carbon Nanotubes

The most common and widespread applications of single walled carbon nanotubes are in cells and batteries, electric wires, conductive adhesive, sports equipment, structural materials, and aviation. It is also utilized in catalyst supports, tissue engineering, composite polymers for tires, automobile parts, bulletproof vests, water-resistant fabrics, and aerospace. The SWCNT plays an essential role in drug delivery, air & water filtration, energy storage, and multipurpose coatings.

Download Resources

How to use Single Walled Carbon Nanotubes (SWCNT)?

Guide to perform dispersion

Things need to have

  • Ultra-pure SWCNT fine powder.
  • Surfactants and ultrasonic probes
  • Using sodium dodecylbenzene sulfonate as an anionic surfactant, the operator can use a nonionic surfactant with higher molecular weight to require an aqueous solution.

Procedure

  • In a container, take the Single-walled carbon nanotubes powder according to the experiment’s need.
  • Mix suitable solvent with the surfactant.
  • Then pour this solution into the dry powder of SWCNT and mix well.
  • Place an ultrasonic probe in the mixture.
  • Be careful about the time duration and power while doing this process. An improper activity can damage the nanotubes affecting their average length.
  • Then get a mixture of SWCNT bundles and suspended SWCNTs
  • Try to break the bundles using sonication.
  • To separate the nanotubes from the bundles, place the solution in a centrifuge. Then centrifuge it at a high rpm for a long time to get desirable nanotubes.
  • The dispersion of functional groups SWCNT can perform without any surfactants.

Safety Measures

Please note that SWCNTs can be highly lethal if it is exposed to the human body. Therefore, utmost care should be taken while handling the product. Follow the instructions below for managing the product safely.

  • To protect the eyes, always wear safety goggles while handling the product. If the product is exposed directly with eyes, then rinse it immediately, and seek professional help.
  • Do not bring the product closer to the nose. In case of accidental inhalation, rush out to get fresh air. Since it is a very fine nanopowder, it directly goes to the human lungs and may affect its functions. If the person who inhales is unconscious, give mouth to mouth resuscitation, and seek medical aid.
  • Use gloves while handling the product all the time. It might get penetrate the skin, hence do not try to touch it with bare hands. If it is exposed closely to hands, immediately rinse hands using soap and water.
  • Do not ingest it. If swallow it accidentally, rinse the mouth thoroughly with water and rush to seek medical attention.
  • Always wear PPE kits to protect from dangerous emissions of the chemicals.
  • Follow the government guidelines to dispose of the residue product safely.

How to Disperse Single Walled Carbon Nanotubes?

Single Walled Carbon Nanotubes should be appropriately dispersed to make full use of their unique properties. SWCNTs have strong attraction forces; hence they need very powerful and effective techniques for dispersion. The tubes should be detangled completely.

A simple process is followed to disperse single-walled carbon nanotubes:

  • First, choose a dispersing agent like a surfactant, polymer, or biomolecule that can strongly interact with SWCNTs.
  • Then, select a solvent that is compatible and allows for effective dispersion.
  • Next, place the SWCNTs, dispersing agent, and solvent in a container and use either an ultrasonic bath or probe sonicator to subject them to sonication.
  • Sonication helps break down clumps and improves dispersion.
  • Successful dispersion is depending on factors such as concentration, dispersing agent concentration, and choice of solvent.

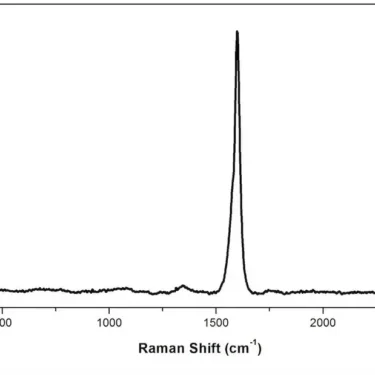

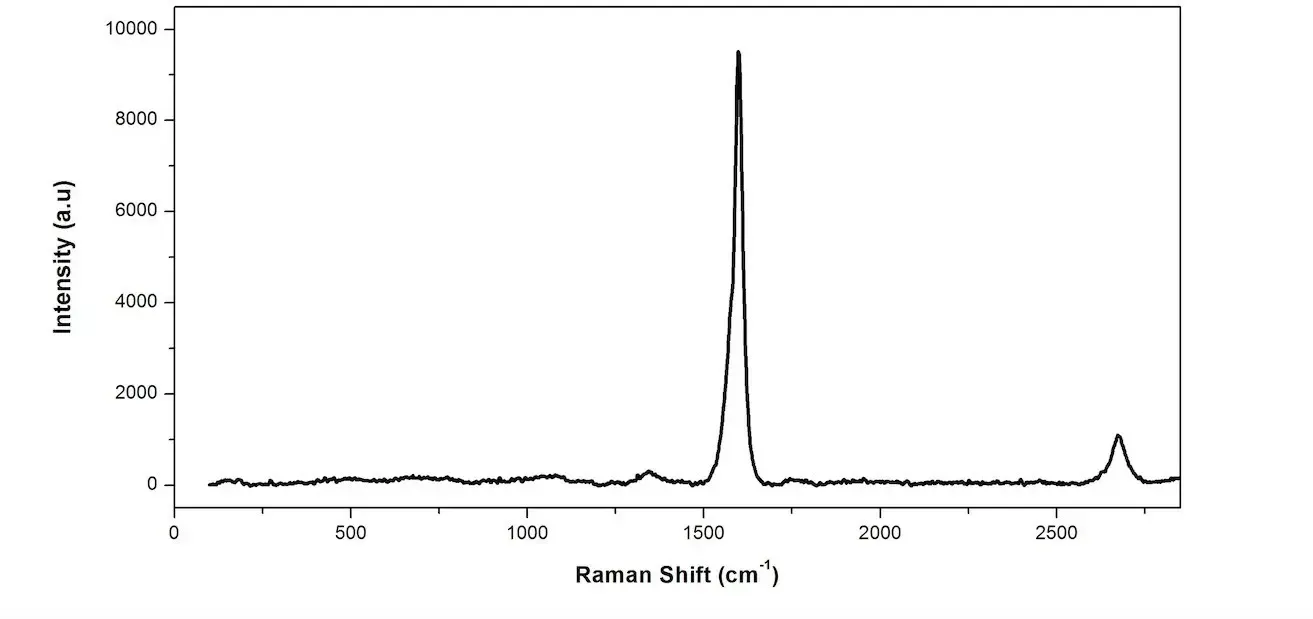

  • Once the distribution is completed, it is essential to check its quality and stability using optical microscopy, UV-Vis spectroscopy, or Raman spectroscopy. These methods help determine if the dispersion is consistent, if the SWCNTs are separated well, and if any clumps remain, allowing for further improvements if needed.

Follow safety protocols and guidelines, wear appropriate personal protective equipment (PPE), and work in a well-ventilated environment.

Dispersion Methods

The methods to disperse Single-Walled Carbon Nanotubes are classified into two categories:

  • Physical methods depend on mechanical forces or energy inputs to overcome the van der Waals interactions and separate the SWCNTs.
  • Chemical methods involve modifying the surface of SWCNTs with functional groups or molecules that can enhance their solubility or compatibility with the solvent or matrix.

Physical methods used for dispersing SWCNTs are:

Sonication:

Sonication is the application of high-frequency sound waves to a solution containing single walled carbon nanotubes. The sound waves create cavitation bubbles that fall, generating high-pressure jets that break up the molecule bundles and disperse them in the solvent. Sonication can be combined with surfactants or polymers to improve dispersion efficiency and stability.

Surfactant-assisted Dispersion:

Surfactants are unique molecules that stick to the surface of singled-walled CNTs. They create a protective layer around the it in water or other liquids, making them more stable. The choice of surfactant depends on factors like the type and number of nanotubes, the solution’s pH and temperature, and how they will be used. Some typical surfactants used to disperse are sodium dodecyl sulfate (SDS), sodium cholate (SC), Triton X-100, and Pluronic F-127.

Polymer-assisted Dispersion:

Polymers are long-chain molecules that can wrap around SWCNTs, stopping them from clumping together. They do this by either creating a physical barrier or through electrical repulsion. The specific polymer chosen depends on its size, charge, structure, and how it will be used. The type of solvent and intended application also play a role. Some common polymers used for dispersing include polyvinylpyrrolidone (PVP), polyvinyl alcohol (PVA), polyethylene glycol (PEG), and polystyrene sulfonate (PSS).

Chemical methods for dispersing SWCNTs are:

Acid treatment:

Strong acids like nitric acid (HNO3) or sulfuric acid (H2SO4) are used at high temperatures for a specific duration to disperse carbon nanotubes. This process can change the surface of SWCNTs by adding carboxylic acid (-COOH) groups or other functional groups. These modifications make it more water-friendly and reactive. Additionally, acid treatment can cut or open the ends of nanotubes, enabling further improvements or changes to their structure.

Covalent functionalization:

Covalent functionalization attaches different groups or molecules to the surface or ends of SWCNTs through chemical reactions. Covalent functionalization can change the electronic structure and properties and improve their ability to dissolve or mix with different substances.
For example, attaching amine (-NH2), thiol (-SH), alkyl (-CH2-), or aryl (-C6H5) groups to SWCNTs is a common form of covalent functionalization.

Non-covalent functionalization:

Non-covalent functionalization is a way to attach molecules or larger molecules (macromolecules) without strong chemical reactions. It uses weak interactions like stacking, bonding, or attraction. It keeps the original structure and properties intact. It also improves their ability to mix with different substances. For example, non-covalent functionalization includes attaching DNA, proteins, peptides, porphyrins, or phthalocyanines by simply adsorbing or wrapping them around.

Structure

They are cylindrical structures composed of a single layer of graphite. They possess unique properties that set them apart from other types of nanotubes. They are significant for diverse applications. The structure is characterized by a central region consisting of carbon atoms with sp2 hybridization. At the ends, a specific arrangement of pentagonal and hexagonal rings allows for the appropriate curvature and closure of the graphitic cylinder.

They generally have diameters ranging from 0.7 to 10 nm. Mostly it is below 2 nm. They also possess different lengths, ranging from a few nanometers to several micrometers. They have a high length-to-diameter ratio, making them nearly one-dimensional structures with special properties.

The arrangement of aromatic rings (graphene lattice) in SWCNTs can vary. This results in different configurations along their central axis.
