Conductive Glass
Conductive Glass
Conductive glasses are optically transparent and electrically conductive in thin layers on glass using conductive coatings.
Conductive Glass applications are made-up from both inorganic and organic materials. Inorganic films typically are made up of a layer of transparent conducting oxide (TCO), generally in the form of indium tin oxide (ITO), fluorine-doped tin oxide (FTO), and doped zinc oxide.
These Conductive glass materials have a broad range of thermal and heated glass performance system, and it’s also increasing light transmittance and optimizing electrical conductivity.

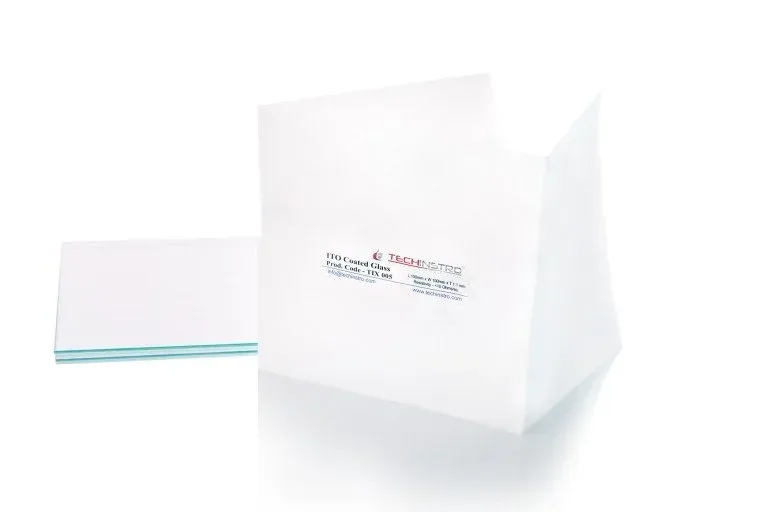

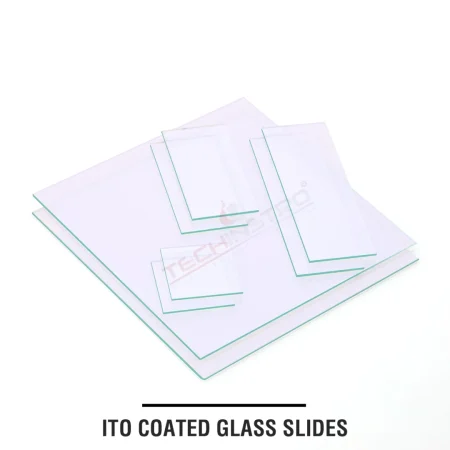

Complete Range of ITO COATED GLASS :
| Product Code | Description | L x W x Thickness | Surface Resistivity |
| TIX001 | Indium Tin Oxide coated Glass | 25mm × 25mm × 1.1mm | ~10 ohms/sq |
| TIX002 | Indium Tin Oxide coated Glass | 50mm × 25mm × 1.1mm | ~10 ohms/sq |
| TIX003 | Indium Tin Oxide coated Glass | 75mm × 25mm × 1.1mm | ~10 ohms/sq |
| TIX004 | Indium Tin Oxide coated Glass | 50mm × 50mm × 1.1mm | ~10 ohms/sq |
| TIX005 | Indium Tin Oxide coated Glass | 100mm × 100mm × 1.1mm | ~10 ohms/sq |
| TIXY001 | Indium Tin Oxide coated Glass | 25mm × 25mm × 1.1mm | ~25 ohms/sq |
| TIXY002 | Indium Tin Oxide coated Glass | 50mm × 25mm × 1.1mm | ~25 ohms/sq |
| TIXY003 | Indium Tin Oxide coated Glass | 75mm × 25mm × 1.1mm | ~25 ohms/sq |
Complete Range of FTO COATED GLASS :
| Product Code | Description | L × W ×Thickness | Surface Resistivity |
|---|---|---|---|
| TISX001 | Fluorine Doped Tin Oxide coated Glass | 25mm × 25mm × 1.1mm | ~10 ohms/sq |
| TISX002 | Fluorine Doped Tin Oxide coated Glass | 50mm × 25mm × 1.1mm | ~10 ohms/sq |
| TISX003 | Fluorine Doped Tin Oxide coated Glass | 75mm × 25mm × 1.1mm | ~10 ohms/sq |
| TISX004 | Fluorine Doped Tin Oxide coated Glass | 50mm × 50mm × 1.1mm | ~10 ohms/sq |
| TISX005 | Fluorine Doped Tin Oxide coated Glass | 100mm × 100mm × 1.1mm | ~10 ohms/sq |
| TISXY001 | Fluorine Doped Tin Oxide coated Glass | 25mm × 25mm × 2.2 mm | ~15 ohms/sq |
| TISXY002 | Fluorine Doped Tin Oxide coated Glass | 50mm × 25mm × 2.2 mm | ~15 ohms/sq |
| TISXY003 | Fluorine Doped Tin Oxide coated Glass | 75mm × 25mm × 2.2 mm | ~15 ohms/sq |
Complete Range of MOLYBDENUM COATED GLASS :
| MOLYBDENUM (Mo) COATED GLASS ( Glass Thickness : 2 mm ), ( Resistivity : < 1 ohms/sq ) | ||||||
|---|---|---|---|---|---|---|
| Product Code | Description | Length x Width | Thickness (mm) | Surface Resistivity | Film Layer Thickness (Single side Coated) | |
| TIMO-001 | Mo Coated glass plate | 25 mm × 25 mm | 2 mm | <1 ohms/sq | 500nm | |
| TIMO-002 | Mo Coated glass plate | 50 mm × 25 mm | 2 mm | <1 ohms/sq | 500nm | |
| TIMO-003 | Mo Coated glass plate | 75 mm × 25 mm | 2 mm | <1 ohms/sq | 500nm | |
| TIMO-004 | Mo Coated glass plate | 50 mm × 50 mm | 2 mm | <1 ohms/sq | 500nm | |
| TIMO-005 | Mo Coated glass plate | 100 mm × 100 mm | 2 mm | <1 ohms/sq | 500nm | |
| MOLYBDENUM (Mo) COATED GLASS ( Glass Thickness : 0.8 mm ), ( Resistivity : < 1 ohms/sq ) | ||||||
|---|---|---|---|---|---|---|
| Product Code | Description | Length x Width | Thickness (mm) | Surface Resistivity | Film Layer Thickness (Single side Coated) | |
| TIMOX-001 | Mo Coated glass plate | 25 mm × 25 mm | 0.8 mm | < 1 ohms/sq | 500nm | |
| TIMOX-002 | Mo Coated glass plate | 50 mm × 25 mm | 0.8 mm | < 1 ohms/sq | 500nm | |
| TIMOX-003 | Mo Coated glass plate | 75 mm × 25 mm | 0.8 mm | < 1 ohms/sq | 500nm | |
| TIMOX-004 | Mo Coated glass plate | 50 mm × 50 mm | 0.8 mm | < 1 ohms/sq | 500nm | |
| TIMOX-005 | Mo Coated glass plate | 100 mm × 100 mm | 0.8 mm | <1 ohms/sq | 500nm | |
Complete Range of AZO COATED GLASS :
| AZO COATED GLASS ( Glass Thickness : 3.2 mm ), ( Resistivity : < 10 ohms/sq ) | ||||||
|---|---|---|---|---|---|---|
| Product Code | Description | Length x Width | Thickness (mm) | Surface Resistivity | Transmittance ( % ) | |
| AZO-001 | AZO coated glass slides | 25 mm × 25 mm | 3.2 mm | < 10 ohms/sq | > 80% | |
| AZO-002 | AZO coated glass slides | 50 mm × 25 mm | 3.2 mm | < 10 ohms/sq | > 80% | |
| AZO-003 | AZO coated glass slides | 75 mm × 25 mm | 3.2 mm | < 10 ohms/sq | > 80% | |
| AZO-004 | AZO coated glass slides | 50 mm × 50 mm | 3.2 mm | < 10 ohms/sq | > 80% | |
| AZO-005 | AZO coated glass slides | 100 mm × 100 mm | 3.2 mm | < 10 ohms/sq | > 80% | |
