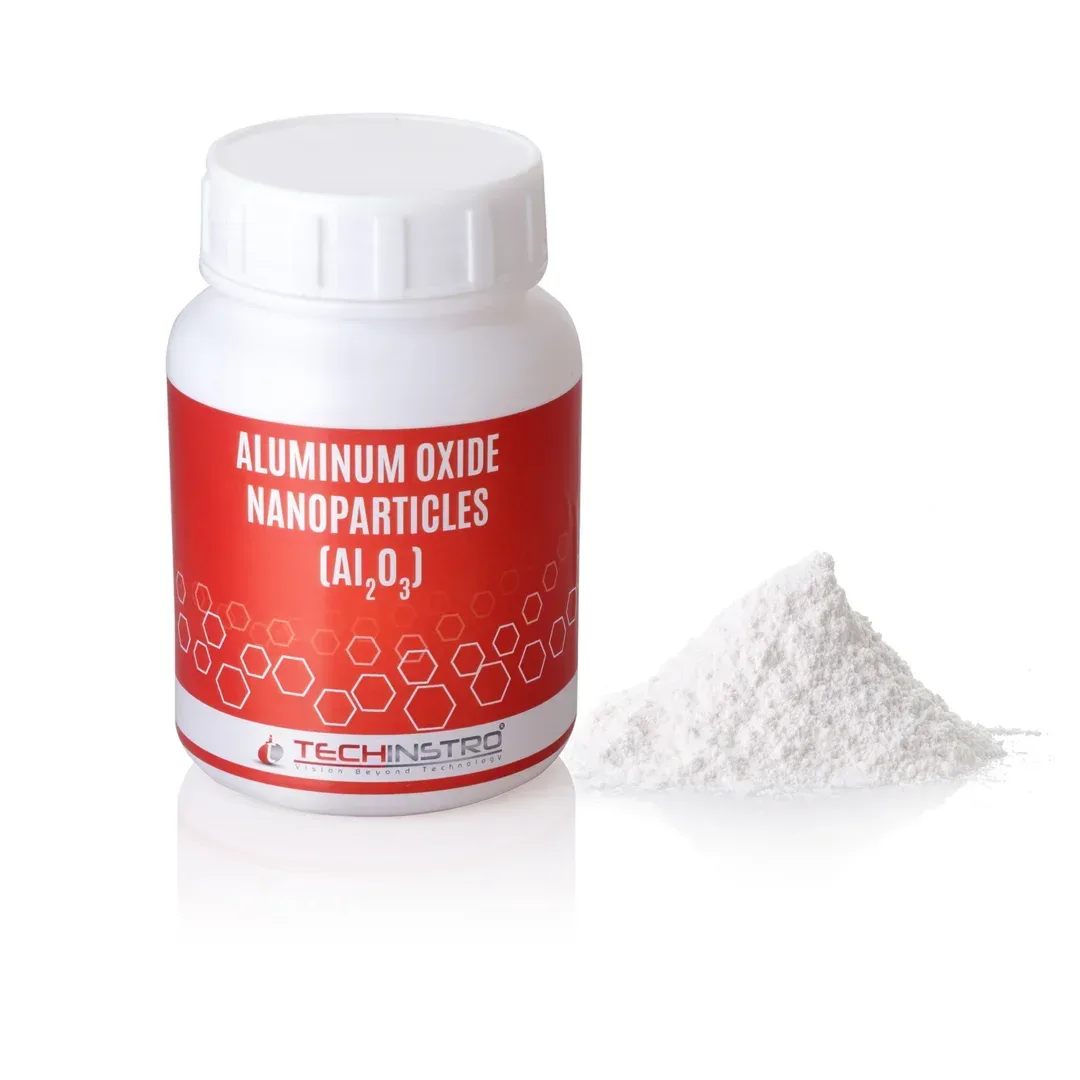

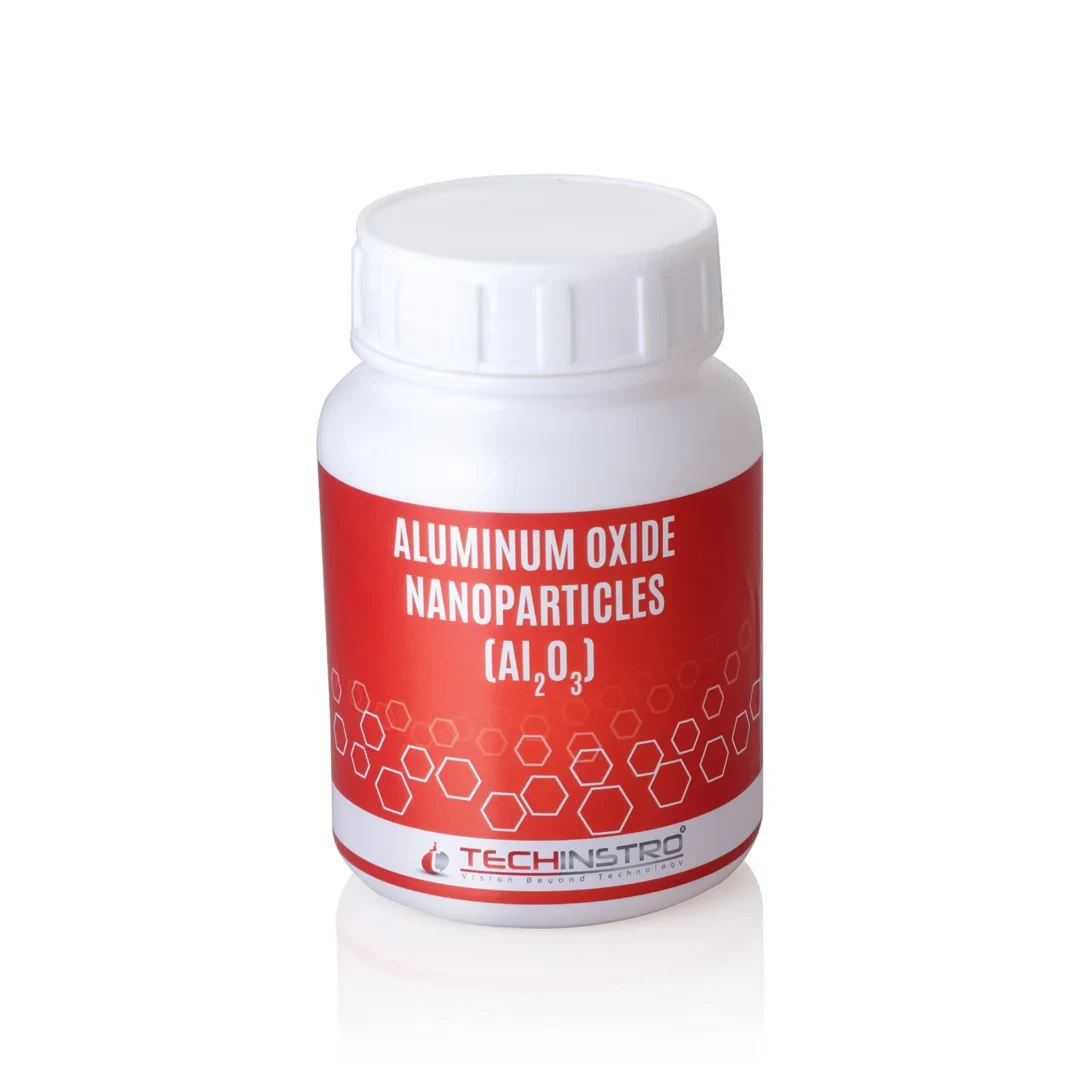

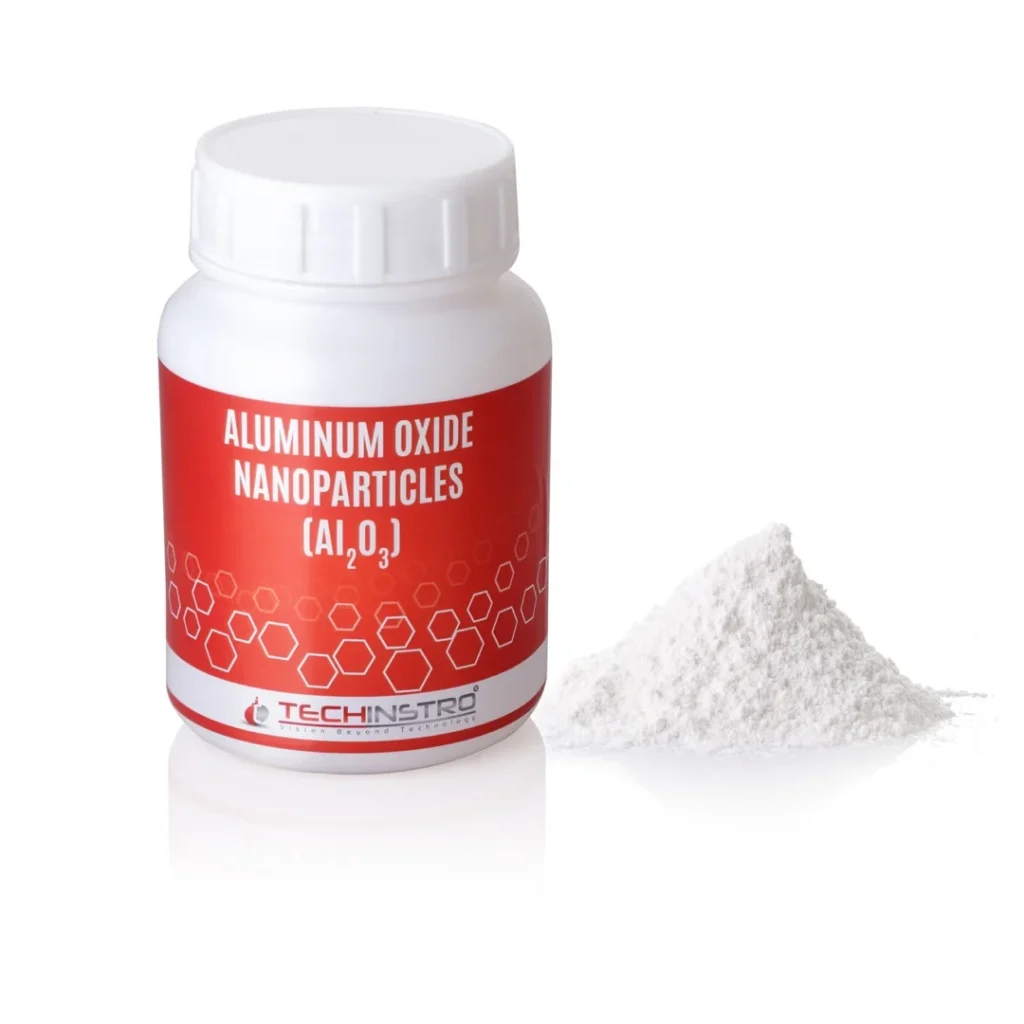

Aluminium Oxide Nanoparticles
Aluminium Oxide Nanoparticles
Highlights
- Concentration 20 wt. % in isopropanol
- Particle size <50 nm (DLS)
- pH level 8-10
- Density 0.79 g/cm3 at 25 °C
- Mechanical strength ranging from 300 to 630 MPa
- Compressive strength ranging from 2,000 to 4,000 MPa
- Hardness exhibiting a range from 15 to 19 GPa
- Moderate thermal conductivity is 20 to 30 W/mK
- Operating temperature without mechanical load is 1,000 to 1,500°C.
- Packaging Sealed PET Bottle

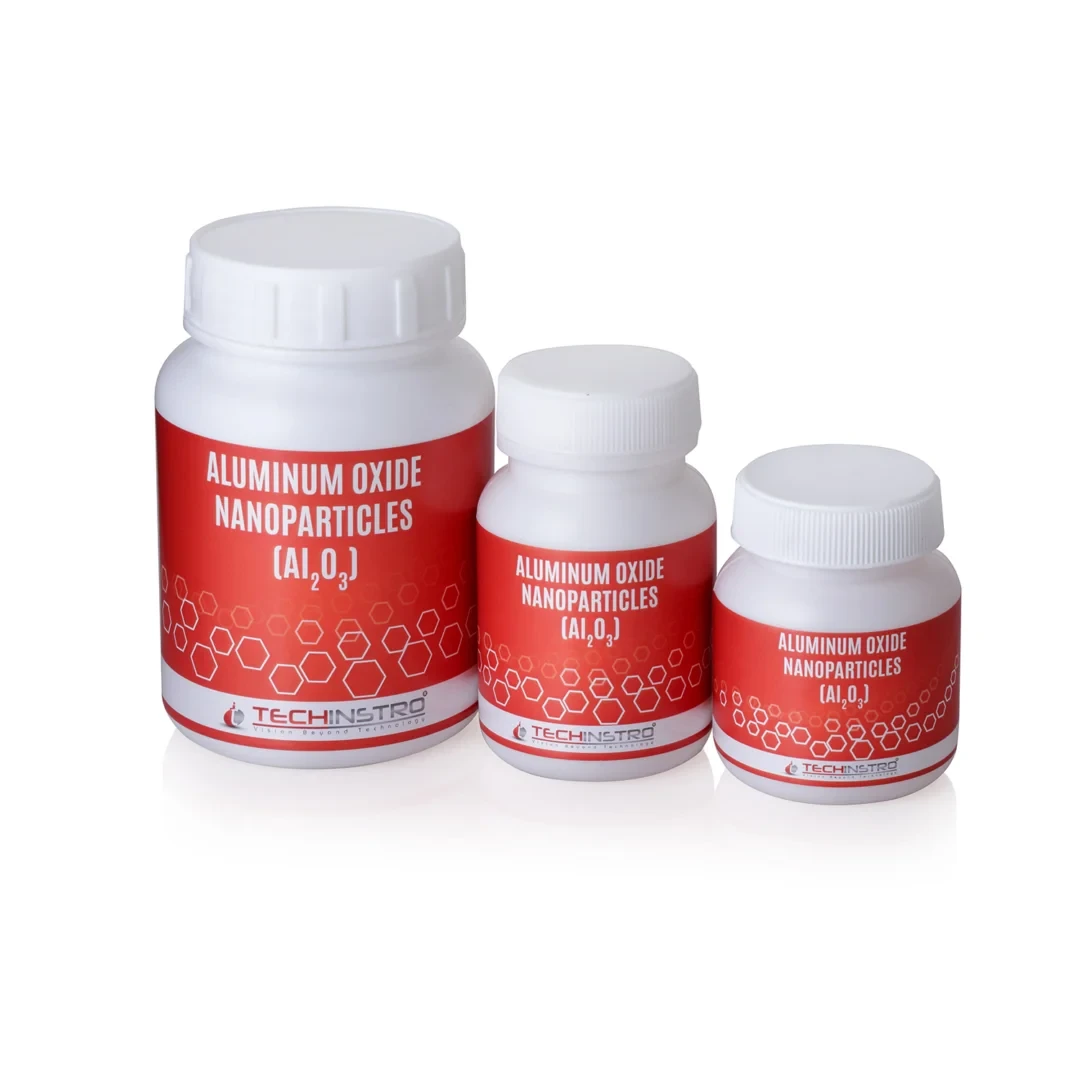

- Size : 100gm | 500gm | 1kg | Bulk / Customized Order
Full Description of Aluminium Oxide Nanoparticles
Aluminium Oxide Nanoparticles often called Aluminium Oxide Nanopowder and abbreviated as Al2O3 Nanoparticles, are spherical nanosized particles of alumina. Aluminium is available abundantly on earth. It has wide applications in different consumer products and applications due to its novel characteristics. Al2O3 nanoparticles have a rod-like shape with a width around 10 nm and a length between 20–50 nm. Aluminium oxide consists of two aluminium atoms and three oxygen atoms. They are bonded collectively in a hexagonal close-packed (HCP) crystal structure. The general name of the compound is alumina or corundum, which are also the core mineral found in rubies and sapphires. It isn’t very pleasant and homogeneously oxidized. The derivation of Aluminium oxide is done from the ore of Aluminium – the bauxite mineral. Bauxite is a sedimentary rock with Aluminium compounds in a mixture with other minerals and non-metals. It also has oxides such as hematite (Fe2O3), quartz (SiO2), and magnetite (Fe3O4). After obtaining bauxite, it is crushed and purified into Aluminium by the Bayer process. Alumina is achieved before the final Aluminium production. This takes place just after the bauxite is coated with a hot sodium hydroxide solution to obtain Aluminium hydroxide. It is then calcinated into alumina. Alumina nanoparticles develop from the alumina or corundum. The preferred method of nanoparticle production is laser ablation. It has versatility in terms of the size of the produced nanoparticles. As the laser beam is pure, it is easy to obtain the purest nanoparticles differently.
The laser beam interacts with the solid it focuses on, forms plasma, and evaporates types of particles. The expanded channel then encounters the ambient gas or fluid that interacts with the beam to form alumina nanoparticles in the configuration.
Download Resources
Technical Specifications of Aluminium Oxide Nanoparticles
| Product Name | Aluminium Oxide Nanoparticles |
| Alternative Name | Alumina Nanoparticles / Aluminium Oxide Nanopowder |
| Chemical Formula | Al₂O₃ |
| Material Type | Aluminium Oxide Nanoparticles |
| Particle Size | <50 nm (DLS) |
| Concentration | 20 wt.% in Isopropanol |
| Dispersion Medium | Isopropanol (IPA) |
| pH Value | 8–10 |
| Density | 0.79 g/cm³ at 25°C |
| Particle Morphology | Nanoscale Alumina; Rod-Like / Nano-Sized Structure |
| Typical Particle Width | Approximately 10 nm |
| Typical Particle Length | Approximately 20–50 nm |
| Electrical Resistivity | 1 × 10¹⁴ to 1 × 10¹⁵ Ω·cm |
| Electrical Properties | Excellent Electrical Insulator |
| Mechanical Strength | 300–630 MPa |
| Compressive Strength | 2,000–4,000 MPa |
| Hardness | 15–19 GPa |
| Thermal Conductivity | 20–30 W/m·K |
| Operating Temperature | 1000–1500°C Without Mechanical Load |
| Corrosion Resistance | Excellent |
| Wear Resistance | Excellent |
| Biocompatibility | Bio-Inert and Food Compatible |
| Dispersion Compatibility | Water and Suitable Organic Solvents with Appropriate Surfactant / Dispersion Method |
| Recommended Dispersion Method | Ultrasonic Probe / Sonication |
| Available Forms | Powder and Dispersion |
| Packaging | Sealed PET Bottle |
| Available Pack Sizes | 100 g, 500 g, 1 kg and Bulk / Customized Orders |
| Typical Applications | Advanced Ceramics, Wear-Resistant Coatings, Thermal Management, Electronic Substrates, Polishing, Composite Reinforcement, Catalyst Supports, Heat Sinks, Plastics, Research and Nanotechnology |
| Storage Conditions | Store in a Cool, Dry Place in a Tightly Sealed Container Away from Direct Sunlight |
Properties of Aluminium Oxide Nanoparticles
It exhibits remarkable properties that are –
- The concentration of the product is 20 wt. % in isopropanol
- The particle size <50 nm (DLS)
- The pH level of the product is 8-10.
- The density of the product is 0.79 g/cm3 at 25 °C
- It has good electrical insulation (1×1014 to 1×1015 Ωcm)
- It displays high mechanical strength ranging from 300 to 630 MPa
- It has a high compressive strength ranging from 2,000 to 4,000 MPa
- The product has a high hardness exhibiting a range from 15 to 19 GPa
- The Moderate thermal conductivity is 20 to 30 W/mK
- It has high corrosion resistance and is immune to wear due to external elements with excellent gliding properties.
- The operating temperature of the product without mechanical load is 1,000 to 1,500°C.
- It is compatible with Bio inert and food.
Applications of Aluminium Oxide Nanoparticles
Advanced ceramic material
Al2O3 nanoparticles application include heavy-duty forming tools, tiles for wear protection and ballistics, substrates, and resistor cores in the electronics industry, seal and regulator discs for water taps and valves, thread guides in textile engineering, heat-sinks for lighting systems, protection tubes in thermal processes or catalyst carriers in the chemicals industry.
Materials Manufacturing
It has uses in the cosmetics industry as fillers high strength ceramics, designed as single crystals for YAG laser applications, etc. In the mechanical industry, it is used as a cutting tool.
Aluminium Oxide Nanopowder shows potential as an ideal ingredient in producing advanced heat transfer fluids. Its applications include baseboards of integrated circuits, vapour depositing substances, polishing materials, packaging materials mixed into plastics for increased hardness, and much more. It has low friction and outstanding durability, making it a good option for additive for any number of composites, as it offers an enhanced wear resistance.
Aluminium Oxide Nanoparticles Comparison
| Parameter | Aluminium Oxide Nanoparticles (Al₂O₃) | Silicon Dioxide Nanoparticles (SiO₂) | Zinc Oxide Nanoparticles (ZnO) | Magnesium Oxide Nanoparticles (MgO) | Titanium Dioxide Nanoparticles (TiO₂) |
|---|---|---|---|---|---|
| Chemical Formula | Al₂O₃ | SiO₂ | ZnO | MgO | TiO₂ |
| Appearance | White / Off-White | White | White | White | White |
| Particle Size | <50 nm | 20–50 nm | <100 nm | 5–100 nm | <100 nm |
| Density | 0.79 g/cm³ for 20 wt.% IPA Dispersion | Bulk Density ~0.25 g/cm³ | 5.6 g/cm³ | 3.58 g/cm³ | 4.23 g/cm³ |
| Molar Mass | 101.96 g/mol | 60.08 g/mol | 81.40 g/mol | 40.30 g/mol | 79.94 g/mol |
| Melting Point | ~2072°C | High-Temperature Stable | 1975°C | 2852°C | 1843°C |
| Hardness | Excellent (15–19 GPa) | Moderate | Moderate | High | High |
| Mechanical Strength | Excellent | Good | Good | Very Good | Very Good |
| Electrical Behavior | Excellent Insulator | Excellent Insulator | Wide-Bandgap Semiconductor | Excellent Insulator | Semiconductor |
| Thermal Conductivity | 20–30 W/m·K | Low | Moderate | High | Moderate |
| Thermal Stability | Excellent | Excellent | Excellent | Exceptional | Excellent |
| Wear Resistance | Excellent | Good | Good | Very Good | Very Good |
| Corrosion Resistance | Excellent | Excellent | Good | Good | Excellent |
| Photocatalytic Activity | Limited | Limited | Excellent | Moderate | Excellent |
| UV Protection | Moderate | Moderate | Excellent | Limited | Excellent |
| Antimicrobial Applications | Application Specific | Limited | Excellent | Excellent | Good |
| Ceramic Applications | Excellent | Excellent | Good | Excellent | Excellent |
| Coating Applications | Excellent | Excellent | Excellent | Very Good | Excellent |
| Composite Reinforcement | Excellent | Excellent | Good | Very Good | Very Good |
| Polishing Applications | Excellent | Excellent | Limited | Limited | Moderate |
| High-Temperature Applications | Excellent | Excellent | Very Good | Exceptional | Excellent |
| Typical Applications | Advanced Ceramics, Wear-Resistant Coatings, Polishing, Electronics, Thermal Management, Composites | Coatings, Polymers, Biomedical Research, Concrete, Surface Modification | UV Protection, Sensors, Antimicrobial Coatings, Electronics, Photocatalysis | Refractories, Electrical Insulation, Ceramics, Antimicrobial Materials, High-Temperature Components | Photocatalysis, Solar Cells, Pigments, UV Protection, Water Treatment |
| Best Choice For | Hardness, Wear Resistance, Ceramics & Electrical Insulation | High Surface Area, Fillers & Surface Modification | UV Protection & Antimicrobial Applications | Refractory & Extreme-Temperature Applications | Photocatalysis & UV-Driven Applications |
| Key Advantage | Excellent Hardness, Mechanical Strength & Wear Resistance | High Surface Area & Chemical Stability | Strong UV Absorption & Semiconductor Properties | Exceptional Thermal Stability & Refractory Performance | Outstanding Photocatalytic Activity & Chemical Stability |
Why Choose Aluminium Oxide Nanoparticles?
- Particle size below 50 nm for nanoscale material development
- High hardness of approximately 15–19 GPa
- Excellent compressive strength of 2,000–4,000 MPa
- Excellent electrical insulation properties
- Good thermal conductivity of 20–30 W/m·K
- Suitable for operating temperatures of 1000–1500°C without mechanical load
- Excellent corrosion, abrasion and wear resistance
- Ideal for advanced ceramics, protective coatings and composite reinforcement
How to Use Aluminium Oxide Nanoparticles?
- Determine the aim of the experiment. The researchers need – Aluminium Oxide Nanoparticles, surfactant, sonic probe, beaker, or container to disperse the product.
- Researchers can opt for chemical surfactants or organic solvents like citric acid or acetic acid. The dispersion of the particles can also be carried out with water.
- Take appropriate amount of Nanopowder and solution for dispersion.
- Slowly add the surfactant to the Nanopowder.
- Do not mix it briskly as it damages the properties of the Aluminium Oxide Nanopowder.
- Use a sonic probe and make sure that the product mixes well.
Why Choose Us?
Techinstro is a reputed organization with experience of over 10+ years in the business. We are one of the leading manufacturers and suppliers of Aluminium Oxide Nanoparticles in the industry. We know that our quality is our identity. We never compromise on our quality and try to provide you with the best quality product. Our development team has immense enthusiasm that makes the product perfect. Our standard packing size is 100gm, 500gm and 1kg. We also quote a lower price for bulk orders. We also offer product modification and customization. It is available with us in powdered as well as dispersed form. Moreover, we assist our clients in using the product for research and an instructional manual. We accept orders for single as well as bulk deliveries.
FAQ's
It is a fine ceramic material, also known as alumina or corundum, with the formula Al₂O₃.
The CAS number is 1344-28-1.
The particles measure less than 50 nm when checked by DLS.
The pH is between 8 and 10.
It has a density of 0.79 g/cm³ at 25 °C.
It melts at roughly 2072 °C, so it holds up under intense heat.
No, the material does not dissolve in water.
No, the material does not dissolve in water.
Its hardness ranges from 15 to 19 GPa, which makes it strong and long-lasting
It withstands compressive loads of about 2,000 to 4,000 MPa
Yes, it stays stable between 1,000 and 1,500 °C when used without mechanical load.
Yes, its resistivity runs from 1×10¹⁴ to 1×10¹⁵ Ω·cm, so it insulates very well.
It resists both wear and corrosion, which helps parts last longer.
It conducts heat at around 20 to 30 W/mK, which suits heat sinks and resistor cores.
It is widely used in advanced ceramics, electronics, polishing and cutting tools, cosmetics, heat transfer fluids and wear-resistant composites.
