Magnetic Drive

Description and Specifications Magnetic Drive

In today’s world, we rely on various engines and motors to power our vehicles, appliances, and machines. One fascinating technology that is gaining popularity is the magnetic Drive. Instead of using traditional mechanical components like gears, belts, and pulleys, a magnetic drive utilizes the power of magnets to produce motion. Let’s delve into the workings of it and understand its benefits.

We produce magnetic drives and overhead magnetic stirrers for high-pressure autoclave reactors and glass equipment. These drives are designed specifically for laboratory stirrer applications that require the maintenance of full vacuum or internal pressure in the glass vessel. They are highly effective at preventing leakage at high pressures and full vacuum, which can reduce distillation time, prevent charring and polymerization of materials, and shorten reaction time. These drives are frequently used in high vacuum distillation setups.

Magnetic Drive features a range of taper glass joints, including B24, B34, B/NS29/32, and B/NS45/40, that are cost-effective and ensure top-notch product quality without any risk of contamination. To use the Magnetic Drive, attach one end to the Nozzle of the glass vessel and the other to the stirrer Motor. Add a glass shaft with a PTFE impeller to the bottom side. This system can handle the torque of various overhead stirrers and is suitable for use with glass vessels up to 50 liters in capacity. It is constructed with SS316, Hastelloy C, Inconel, PEEK, and Monel and can operate at RPMs up to 3000.

How Does a Magnetic Drive Work?

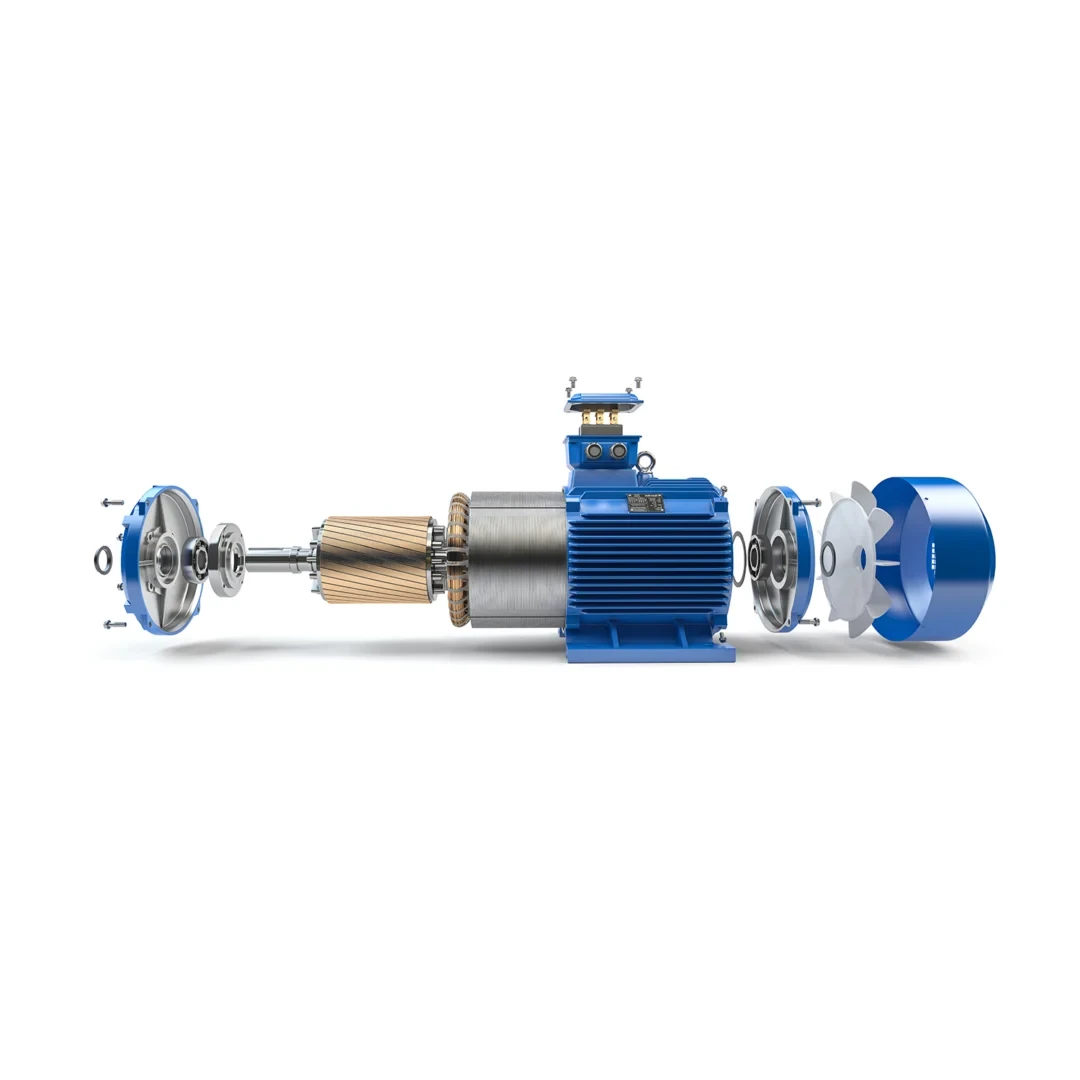

It consists of two main components: a stator and a rotor. The stator is a stationary part that houses electromagnets, which an electric current can switch on and off. On the other hand, the rotor is composed of magnets and rotates. After activating the stator electromagnets, they produce a magnetic field that interacts with the rotor’s magnets.

When the magnets on the rotor align with the magnetic field generated by the stator, they experience a force of attraction or repulsion. This force causes the rotor to rotate. The rotor’s speed and direction can be precisely controlled by controlling the electromagnets’ activation and deactivation.

Advantages of Magnetic Drive:

  1. Efficiency: It is highly efficient because they eliminate the need for physical contact between components. Unlike traditional drives involving friction and wear, this Drive operates without mechanical contact. This reduces energy losses and increases overall efficiency.
  2. Reliability: Since no direct physical contact exists between the stator and the rotor, the drives experience less wear and tear. This results in improved reliability and reduces the need for frequent maintenance.
  3. Silent Operation: It produces minimal noise compared to traditional drives. The absence of moving parts in direct contact reduces vibration and mechanical noise, making them ideal for quiet applications.
  4. Controllability: It offers precise control over speed and direction. By adjusting the current in the electromagnets, the rotational speed of the rotor can be easily modified, allowing for smooth and accurate motion control.

Applications of Magnetic Drives:

They have found applications in various fields, including:

  1. Pumps and Compressors: It is commonly used in pumps and compressors to transfer fluids without any leakage. The absence of shaft seals, prone to wear and leakage, makes drives ideal for handling corrosive or hazardous liquids.
  2. Electric Vehicles: These drives can be used by electric vehicles to transfer power from the motor to the wheels. Their efficiency and reliability make them a suitable choice for enhancing the performance of electric vehicles.
  3. Industrial Machinery: It is employed in various industrial machinery applications, such as conveyors, mixers, and agitators. They provide precise control over rotational speed and eliminate the risk of contamination from lubricants.

Safety Features:

Magnetic drives have safety features to make sure they work reliably and safely:

  1. Containment of Hazardous Fluids: It prevents dangerous fluids from leaking, keeping everyone safe and preventing contamination.
  2. Overload Protection: Safety measures are in place to detect when the driver is under too much stress. If that happens, the Drive automatically shuts down or reduces power to avoid damage.
  3. Temperature Monitoring: The temperature of the Drive’s parts is constantly checked to prevent overheating. If the temperature gets too high, alarms go off, or the Drive shuts down to prevent accidents.
  4. Emergency Shutdown: In case of emergencies or critical situations, there’s a quick and reliable way to stop the Drive. There are emergency stop buttons or remote shutdown options to protect people and equipment.
  5. Isolation from Electrical Hazards: These are designed to keep electrical parts separate from external elements. This reduces the risk of electrical shocks and ensures the Drive works safely within specific electrical limits.

Why Choose Us?

  1. We at Techinstro are the manufacturer and supplier of magnetic drives. Our team of experts deeply understands magnetical drive technology. With their knowledge and experience, we can provide clients with the best solutions for customer needs.
  2. Our drives have the highest quality and reliability. We thoroughly test them to ensure they perform well and last long.
  3. We know that every application is different. We offer customization options to tailor these drives to the client’s requirements.
  4. Our commitment is unwavering in delivering unparalleled customer support services. We are responsive, answer questions, and provide technical guidance whenever needed. We are here to help clients.
  5. We offer great value for client’s investment. Our products are competitively priced, ensuring quality products without breaking the bank.
  6. We understand the importance of timely delivery. We aim to ensure the timely delivery of drives, allowing operations to run seamlessly and efficiently.
  7. Our product has strong safety features to ensure secure operations and protect people and equipment.
  8. Our drives are suitable for various industries and uses. Our drives offer reliable and efficient motion solutions, whether pumps, compressors, electric vehicles, or industrial machinery.
  9. Our team is always striving to enhance our product. By choosing us, clients benefit from the latest advancements in the field, boosting performance and efficiency.
  10. Our goal is to establish long-term relationships with our clients. Beyond providing magnetic drives, we offer comprehensive support, maintenance, and after-sales services, ensuring a fruitful collaboration.
