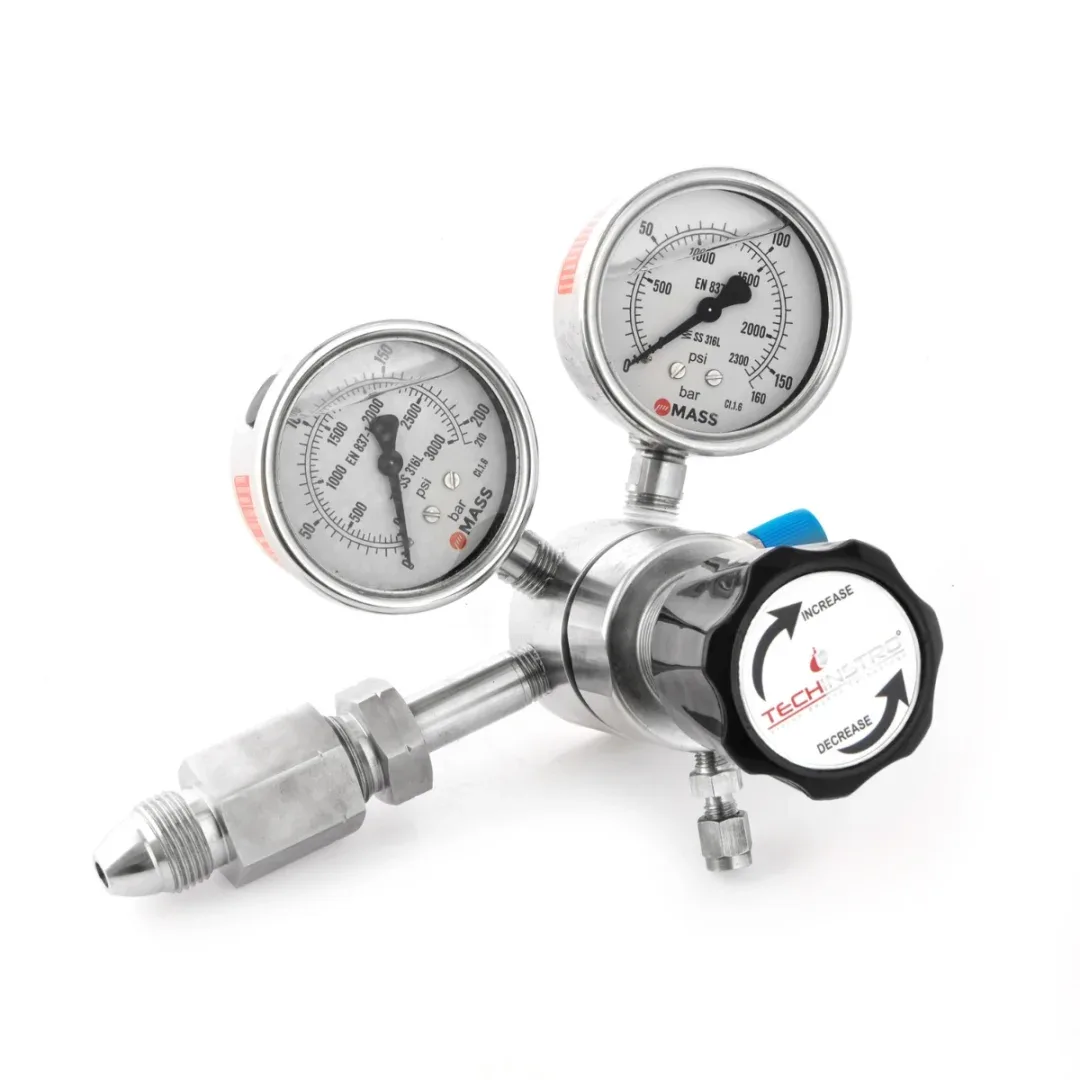

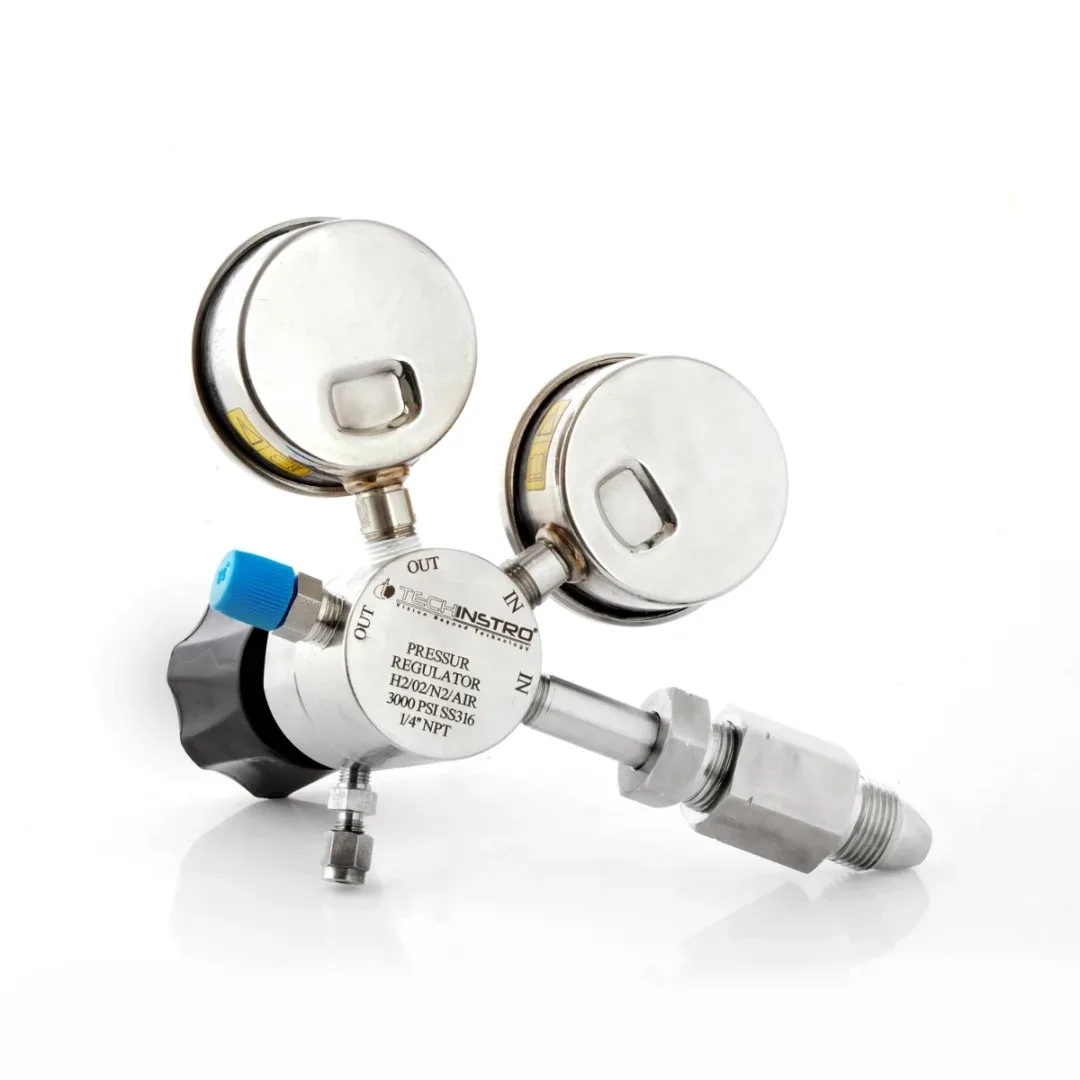

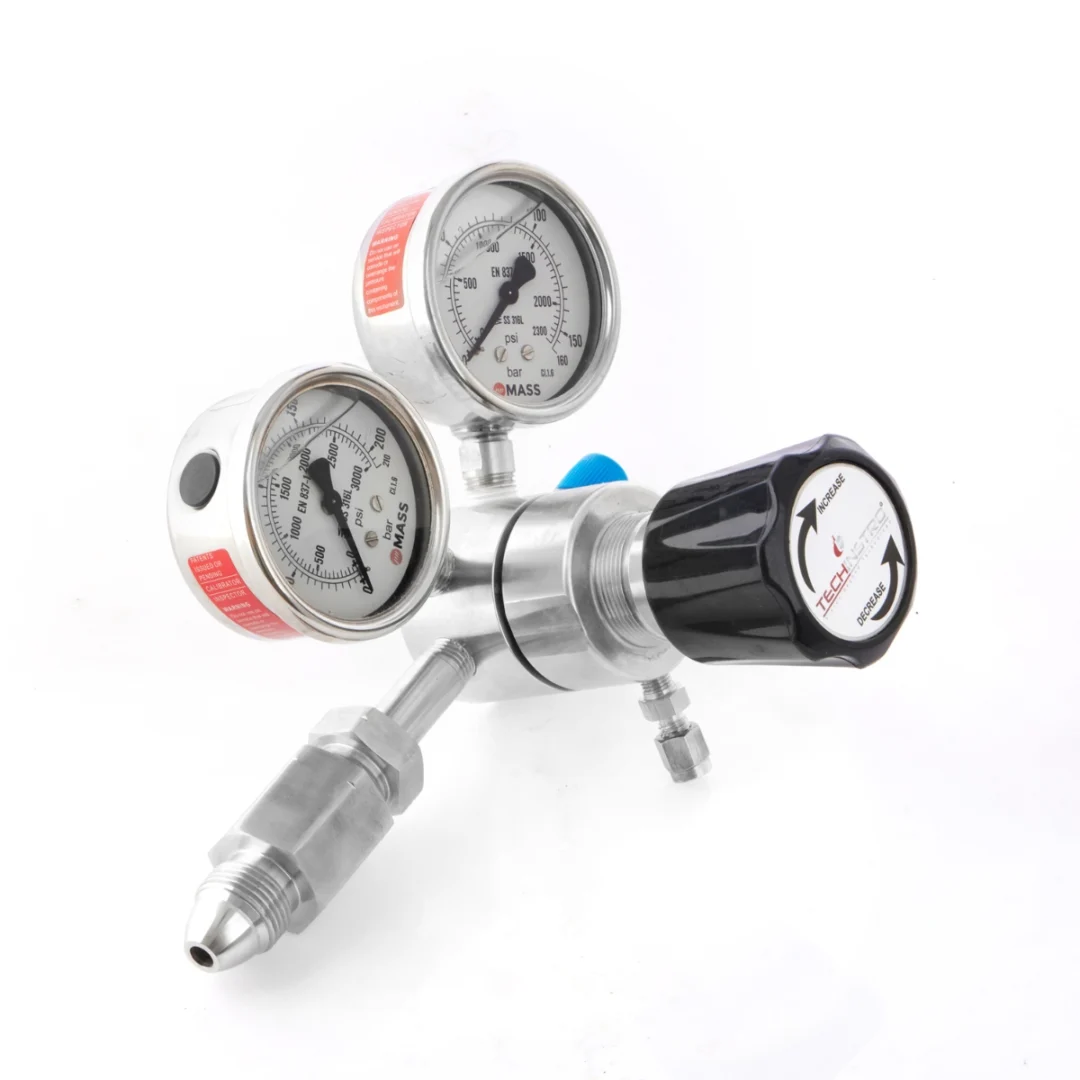

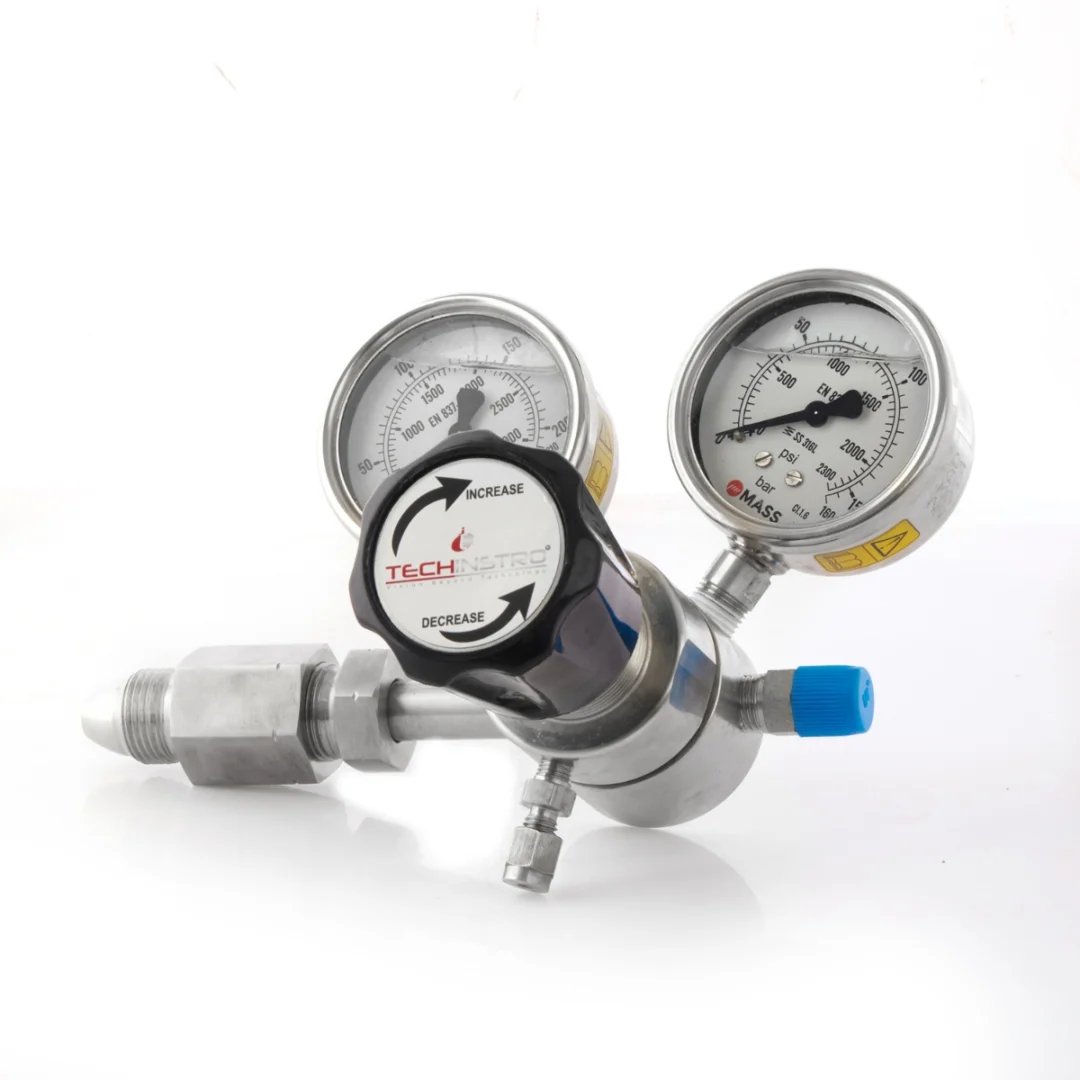

High Pressure Regulator

Specifications and Description of High Pressure Regulator

A High Pressure Regulator has various industrial applications, particularly in gas and fluid systems where precise pressure control is necessary. The regulator is engineered to handle high inlet pressures and reduce it to a lower, manageable level that can be safely utilized by downstream equipment or processes. The design uses good materials and new technology to stay strong and work well in challenging conditions.

Usage

High Pressure Regulator is commonly used in industries such as welding, medical gas delivery, and chemical processing, where maintaining a consistent outlet pressure is vital for operational safety and efficiency. These regulators protect equipment from damage by controlling changes in pressure and flow. It ensures the right amount of gas or liquid is used to help the whole system work better.

Features of High Pressure Regulator

Some of the key features of High Pressure Regulators include:

Pressure Management System: An automated system that keeps output pressure steady, even when the inlet pressure changes, ensuring smooth and safe operation.

Poppet Valve Assembly: A spring-loaded valve that accurately reduces pressure, with a precision-fitted seat for dependable and leak-free function.

Flow Control Orifice: A finely machined opening that improves gas flow and ensures stable control for each application.

Safety Mechanisms: Safety mechanisms include a pressure relief valve and fail-safe features to keep pressure within safe limits.

Sealing System: Seals made from elastomers or advanced fluoropolymers are chosen for the compatibility with various gases and pressures.

Inlet Filtration: A 20-micron stainless steel filter stops particles from entering and is designed for easy maintenance in the field.

Corrosion Resistance: The system is built for extended service life and is constructed with corrosion-resistant stainless steel and treated surfaces.

Surface Treatment: Electropolished internal surfaces with Ra ≤ 0.4 μm enhance flow characteristics and maintain cleanliness.

Cleanliness: The certified contamination-free system is cleaned and packaged to meet specific gas service standards.

Applications of High Pressure Regulator

High Pressure Regulator is essential in many areas, like healthcare, manufacturing, and food production. In hospitals, it safely manage gases, which is vital for caring for patients. In factories, these regulators help keep machines and equipment running safely by maintaining the right pressure levels.

High Pressure Regulators help keep food fresh with fewer chemical additives in food manufacturing, promoting healthier products. It is also valuable for labs, where it convert certain liquids into gases without letting it turn back into liquids.

High Pressure Regulator is also standard in everyday settings, such as gas grills at home or heating systems. Large buildings rely on it for power and heating, while factories use it to control air pressure in machines and tools. Even in the automotive industry, High Pressure Regulators manage fuel flow and control hydrogen in energy systems, showing how versatile and valuable it is in modern life.

How to use high pressure regulator?

Before installing the regulator, confirming that it suits the gas being used is important. All parts should be checked for any damage, and the pressure ratings must align with what is needed for the application. At the time of installation, start by tightening the connection to the gas source by hand, then use a wrench to make it secure. When pressurizing, stand adjacent to the gauge and gradually open the source valve, monitoring the gauge readings to reach the desired flow rate. During shutdown, close the source valve completely, depressurize the system, and, if necessary, remove the regulator.

Safety measures

When installing the regulator, it is essential to place it in a spot with good ventilation. It should be at least five meters away from ignition sources and kept out of direct sunlight. Fuel and oxidizer gas lines need to be routed carefully, ensuring there are barriers between the two to reduce risk. Fire suppression equipment that matches the type of gas should be installed for better safety.

To start pressure testing, first close the outlet valve. Then, open the source valve and adjust the regulator to 0.3 MPa. After this, close the source valve and watch the pressure for 30 minutes. During this time, the pressure should not drop more than 0.015 MPa. Leak detection for standard gases involves using an approved detection solution, while hydrogen service requires a 50/50 water-methanol mix; soap-based solutions are not recommended. Check all connections carefully.

Conduct weekly visual inspections, verify pressure gauge accuracy quarterly, and perform a comprehensive inspection annually. Keep the system temperature below 40°C and ensure all components remain oil—and grease-free. Document all inspections and maintenance activities diligently.

Never exceed the maximum inlet pressure, and ensure proper ventilation. Use materials suitable for each specific gas, control any hydrogen releases, and immediately shut off the gas supply if a leak is detected. Follow proper purging procedures and wear appropriate personal protective equipment (PPE) for added safety.
