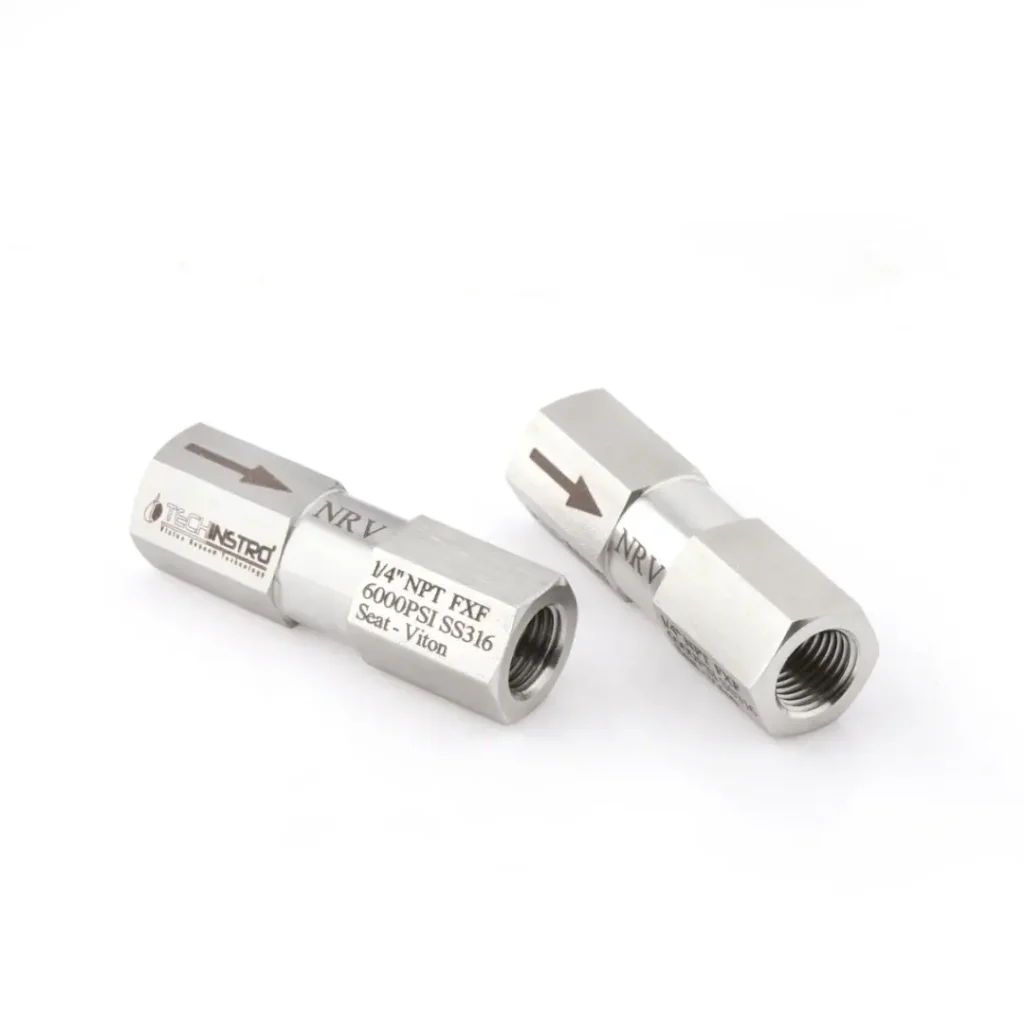

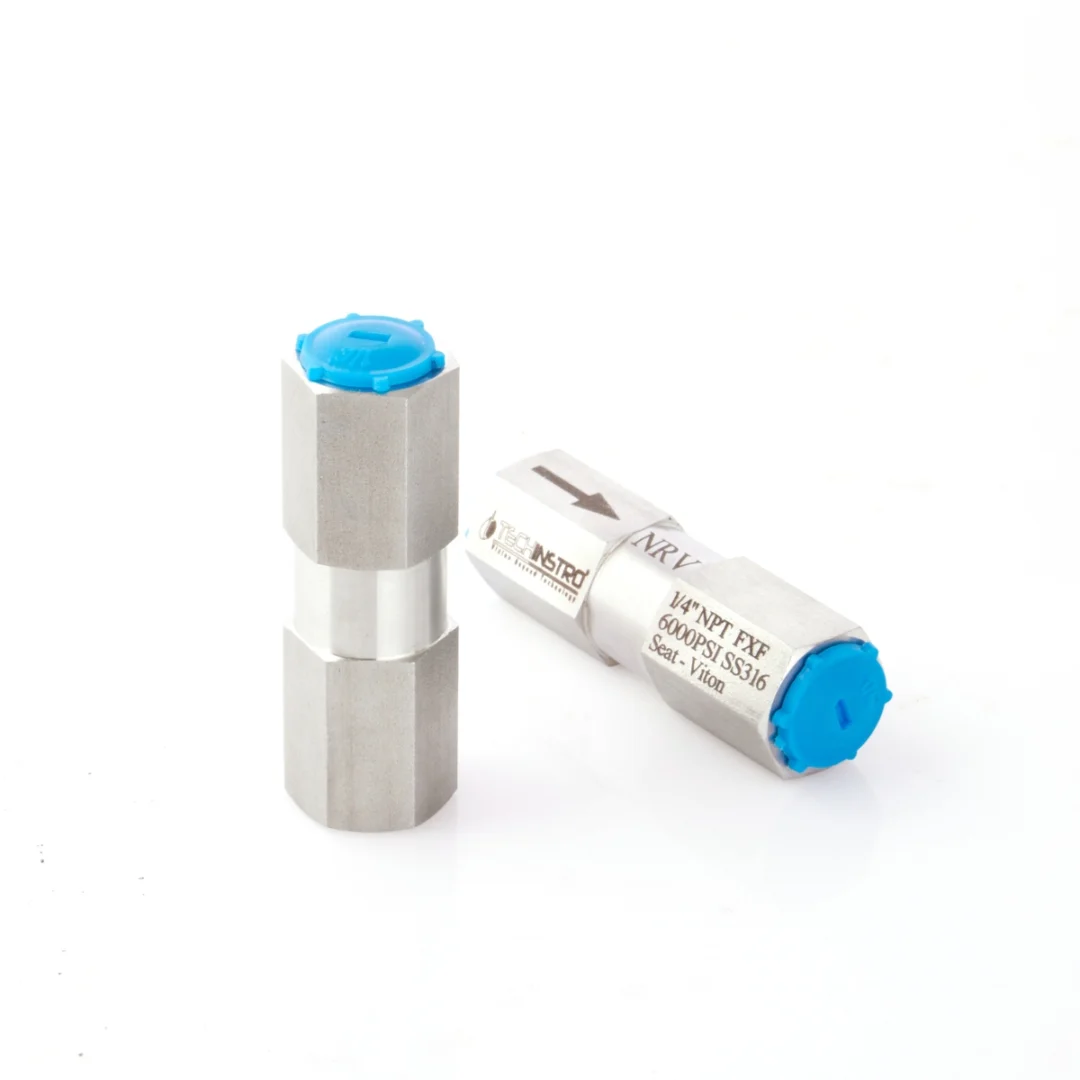

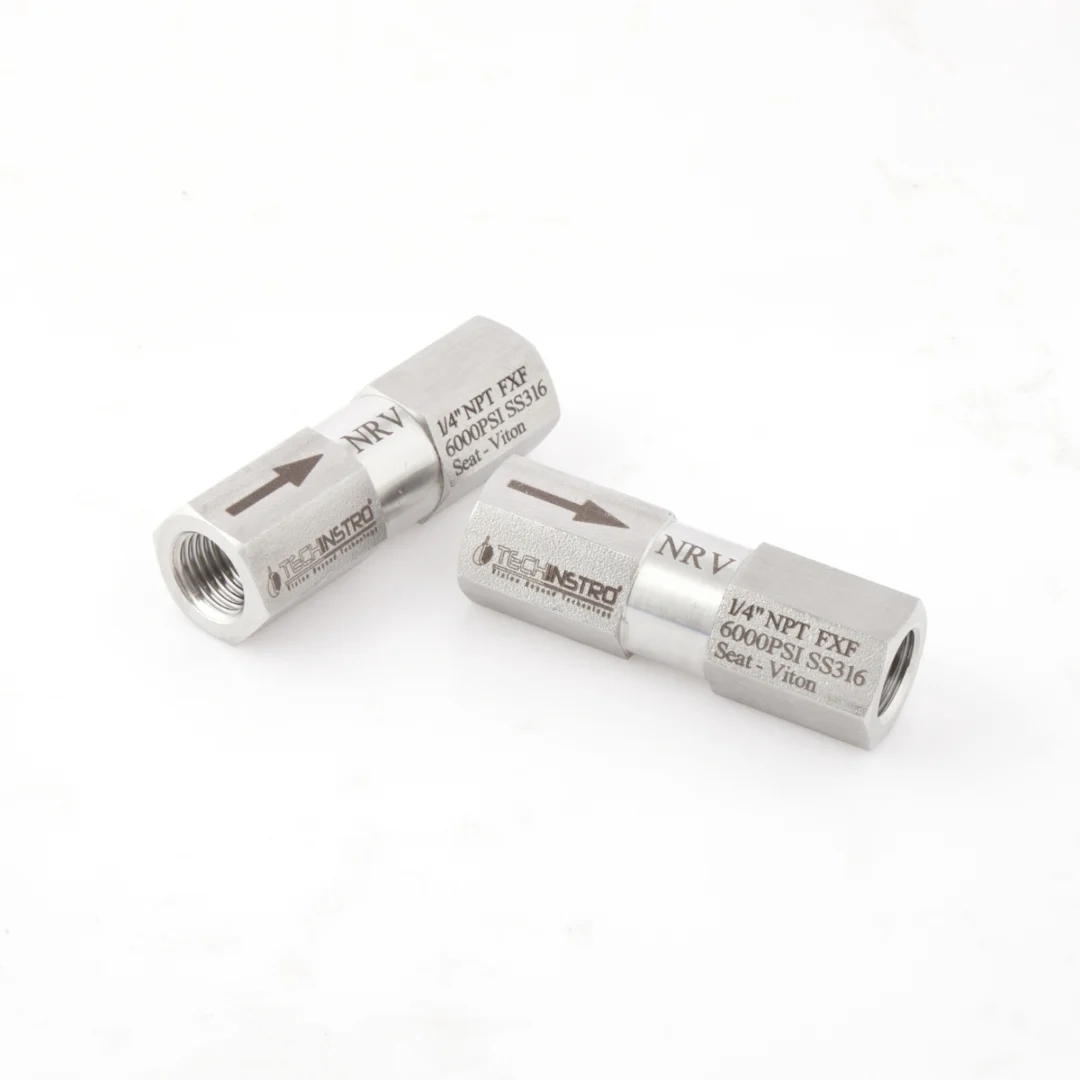

High Pressure Non Return Valve
Main Highlights
- Pressure 3000 Psi
- Temperature 100Oc
- Media Oil, Gas, Air and Water
- Ends Screwed/Threaded
Specifications and Description High Pressure Non Return Valve
A high pressure non return valve, often known as a one-way valve, is a device that allows fluid flow in a single direction only. Non return valves have other famous names, such as check, reflux, retention, and foot valves.
It has two openings
- an inlet that allows the fluid to enter
- an outlet that does not allow backflow
Its operation primarily depends on the pressure differential between the ports.
How this work?
When the pressure on the inlet port is high, the valve opens the passage, allowing fluid to flow. As the flow reverses, the pressure at the exit port rises above that at the inlet port, and the valve shuts its channel, halting the flow.
In check valves, the cracking pressure represents the lowest differential upstream pressure between the ports where the valve will work. The valve requires a minimal pressure differential between its input and exit to indicate the first flow. Typically, the check valve is built to withstand a given cracking pressure and can thus be specified. The valve’s design consists of flat surfaces that stop backflow.
High pressure non return valve is made from brass, PVC, stainless steel, and cast iron. The application, pressure, and temperature requirements frequently determine the material of choice. Operating these valves does not require an actuating mechanism or human intervention.
What is Cracking Pressure?
The minimal pressure differential is required between the valve’s input and exit to provide the first indication of flow (a steady stream of bubbles). Cracking pressure is also called unseating head (Pressure) or opening pressure.
What is Reseal Pressure?
During the check valve’s closing operation, when no visible leak rate exists, the reseal pressure is the differential pressure between the valve’s intake and outlet. Reseal pressure is often called sealing pressure, seat head (pressure), or closing pressure. Back pressure refers to a higher pressure at a fitting’s exit compared to its inlet or upstream location.
Properties of High Pressure Non Return Valve
- Pressure Sensitivity: High pressure non return valve opens and closes based on pressure differences between inlet and outlet ports, ensuring efficient flow control.
- Safety: Valves prevent accidents and leaks caused by reverse flow, maintaining safety in various industries.
- Flow Control: The valve allows fluids or gases to move in only one direction, preventing backflow.
- Adaptability: Suitable for high-pressure systems like hydraulics, pipelines, and compressed air systems across different industries.
- Efficiency Enhancement: Non-return valves improve overall system efficiency by maintaining pressure integrity and preventing energy loss due to backflow.
- Durability: Designed to withstand high pressures and harsh conditions, ensuring long-term reliability and performance.
- Maintenance Advantages: Non return valves reduce the need for frequent maintenance and repairs by ensuring smooth and uninterrupted flow in the system.
Applications of High Pressure Non Return Valve
High pressure non return valve is used in various applications to avoid backflow and ensure unidirectional flow. It is essential to preserve domestic drinking water sources by keeping polluted water from entering the main lines.
Sewage systems use it to keep effluent from harming freshwater sources. In the oil and gas industry, these valves keep pipelines and wellheads flowing in the right direction, assuring safety and efficiency.
Industrial processes rely on high pressure non return valves to prevent reverse flow and ensure the integrity of chemical reactions.
High pressure non return valves benefit HVAC systems by providing adequate refrigerant flow in air conditioning units and correcting warm water or steam circulation in heating systems.
Pumping systems employ it to prevent backflow, protecting and keeping it prime.
High pressure non return valve is used in fire prevention systems to ensure water goes toward the fire source without contaminating the water supply.
In medical applications, it guarantees that airflow is directed correctly in respiratory equipment and that blood does not backflow into IV lines.
These valves maintain efficient fuel systems and proper hydraulic fluid flow in the automotive and aerospace sectors.
In marine and agricultural applications, it prevents water pollution and preserves system efficiency.
Safety Measures
All system operators must understand the purpose and operation of the high pressure non return valve, including how it prevents backflow and ensures unidirectional flow.
Users must regularly check the high-pressure non-return valve for evidence of wear, corrosion, or damage and handle any irregularities immediately to avoid potential failure.
Monitor system pressure to ensure it stays within safe operating parameters. Sudden pressure spikes or decreases might impair valve performance and system integrity.
Install the high pressure non return valve according to the manufacturer’s instructions. It includes ensuring proper orientation and securing connections to prevent leaks and maintain optimal performance.
Establish explicit protocols for shutting down the system before performing maintenance or inspections on the non-return valve. To avoid mishaps, operators must properly depressurize and isolate the valve.
When operating or working near high pressure non return valves, ensure operators wear suitable PPE, such as safety goggles, gloves, and protective clothing. This prevents potential fluid leaks or splashes.
Implement a regular maintenance program for the non return valve and accompanying equipment. This program involves cleaning, lubricating, and replacing worn parts as needed to maintain dependability and safety.
Why Choose Us?
Techinstro takes pride in being one of the best manufacturers and suppliers of high pressure non return valves designed to fulfill the needs of various sectors. With a focus on excellence and innovation, we provide high-quality valves customized explicitly for applications in oil and gas, chemical processing, water treatment, etc. Our high pressure non return valves withstand harsh conditions and heavy use while maintaining peak performance. It is designed for systems requiring reliable flow control under extreme pressure conditions. This precision-engineered valve ensures unidirectional flow, preventing backflow and maintaining the integrity of the piping system. Whether in industrial applications or high-pressure hydraulic systems, this valve delivers exceptional performance with zero leakage. Our dedication to excellence in craftsmanship and our customer-centric approach distinguish us in the business.
We precisely design it to lock securely, ensuring dependable operation even after long periods of inactivity. Customers choose us because we offer outstanding craftsmanship, dependability, and a commitment to customer happiness. We understand each project has different requirements, so we provide customization possibilities. We can tailor our high pressure non return valves to our customer’s needs, including size, material, pressure rating, and unique features. Our global shipping services ensure customers worldwide can easily access our high-quality non return valves. Whether operator needs standard valves or custom solutions, Techinstro remains reliable and affordable price source for high-quality products and exceptional customer service.
