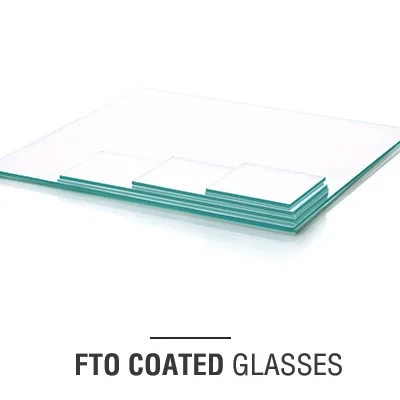

FTO Glass
FTO GLASS
- Specified FTO Sheet resistivity – ≤ 10 ohms/sq
- Typical FTO Sheet resistivity – 9~11 ohms/sq
- Transpmittance at 550nm – ≥ 79%
- FTO film Thickness – 1800-2000 Å
- Haze – ≤ 9%
- Configuration – FTO on Glass
- Substrate – Soda lime Float glass
- Surface finished of glass – Single Sided polished
- Passivation layer – NO
- FTO coating method – Spray pyrolysis method
| FTO COATED GLASS ( Glass Thickness : 1.1mm ), ( Resistivity : ~10 ohms/sq ) | ||||||
|---|---|---|---|---|---|---|
| Product Code | Description | Length x Width | Thickness (mm) | Surface Resistivity | Transmittance ( % ) | Buy Now |
| TISX001 | Fluorine Doped Tin Oxide coated Glass | 25mm × 25mm | 1.1mm | ~10 ohms/sq | >79 | BUY NOW |
| TISX002 | Fluorine Doped Tin Oxide coated Glass | 50mm × 25mm | 1.1mm | ~10 ohms/sq | >79 | BUY NOW |
| TISX003 | Fluorine Doped Tin Oxide coated Glass | 75mm × 25mm | 1.1mm | ~10 ohms/sq | >79 | BUY NOW |
| TISX004 | Fluorine Doped Tin Oxide coated Glass | 50mm × 50mm | 1.1mm | ~10 ohms/sq | >79 | BUY NOW |
| TISX005 | Fluorine Doped Tin Oxide coated Glass | 100mm × 100mm | 1.1mm | ~10 ohms/sq | >79 | BUY NOW |
| FTO COATED GLASS ( Glass Thickness : 2.2mm ), ( Resistivity : ~7 ohms/sq ) | ||||||
|---|---|---|---|---|---|---|
| Product Code | Description | Length x Width | Thickness (mm) | Surface Resistivity | Transmittance ( % ) | Buy Now |
| TISXZ001 | Fluorine Doped Tin Oxide coated Glass | 25mm × 25mm | 2.2mm | ~7 ohms/sq | >85 | BUY NOW |
| TISXZ002 | Fluorine Doped Tin Oxide coated Glass | 50mm × 25mm | 2.2 mm | ~7 ohms/sq | >85 | BUY NOW |
| TISXZ003 | Fluorine Doped Tin Oxide coated Glass | 75mm × 25mm | 2.2 mm | ~7 ohms/sq | >85 | BUY NOW |
| TISXZ004 | Fluorine Doped Tin Oxide coated Glass | 50mm × 50mm | 2.2 mm | ~7 ohms/sq | >85 | BUY NOW |
| TISXZ005 | Fluorine Doped Tin Oxide coated Glass | 100mm × 100mm | 2.2 mm | ~7 ohms/sq | >85 | BUY NOW |
| FTO COATED GLASS ( Glass Thickness : 2.2mm ), ( Resistivity : ~15 ohms/sq ) | ||||||
|---|---|---|---|---|---|---|
| Product Code | Description | Length x Width | Thickness (mm) | Surface Resistivity | Transmittance ( % ) | Buy Now |
| TISXY001 | Fluorine Doped Tin Oxide coated Glass | 25mm × 25mm | 2.2 mm | ~15 ohms/sq | >85 | BUY NOW |
| TISXY002 | Fluorine Doped Tin Oxide coated Glass | 50mm × 25mm | 2.2 mm | ~15 ohms/sq | >85 | BUY NOW |
| TISXY003 | Fluorine Doped Tin Oxide coated Glass | 75mm × 25mm | 2.2 mm | ~15 ohms/sq | >85 | BUY NOW |
| TISXY004 | Fluorine Doped Tin Oxide coated Glass | 50mm × 50mm | 2.2mm | ~15 ohms/sq | >85 | BUY NOW |
| TISXY005 | Fluorine Doped Tin Oxide coated Glass | 100mm × 100mm | 2.2 mm | ~15 ohms/sq | >85 | BUY NOW |
APPLICATIONS
• Thin film solar cells
• Dye solar cells
• Touch panels
• Conductivity Measurements
• Film or Layer Casting on FTO
• Optical Devices and Liquid Crystal Displays (LCDs)
• Organic Light Emitting Diodes (OLEDs)
• Electroluminescent (EL) Devices
• Photochromic Devices
• DNA Immobilization and Detection
• Sensors as well as Biosensors
• Photovoltaic Devices (Organic and Inorganic)
